LC APC QUAD Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃)

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , Wide Operating Temperature LC APC QUAD Adapter

Product Description

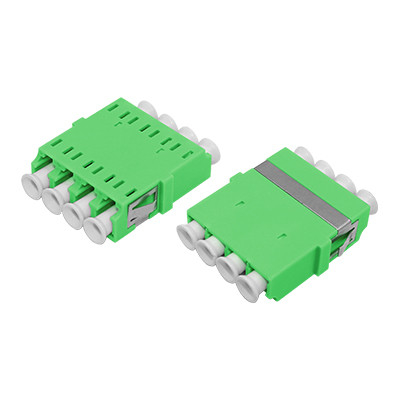

LC APC QUAD One-piece Adapter With Flange

Precision fiber optic adapter designed to connect LC APC QUAD connectors with flange mounting, ensuring optimal optical performance and reliable connectivity in telecommunications and networking applications.

Product Identification

Zion Code	Zion Description
7235010	LC APC QUAD One-piece Adapter With Flange

Applications

Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing prior to shipment to ensure quality performance.

Product Description

Fiber optic adapters enable connection between same or different fiber optic connectors within optical lines. They maintain uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces, ensuring maximum coupling efficiency between transmitting and receiving fibers. These passive optical components are essential for telecommunications networks, cable television systems, user loop networks, and local area networks.

Also known as fiber optic couplers, these devices terminate or link fiber optic cables and connectors between two optical lines.

LC APC QUAD Asymmetric Welding Adapter With Flange

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm)	SM (OS2): 1310-1550 \| MM (OM1,2,3,4): 850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related LC-LC Fiber Optical Adapters

7235001

LC SX Plastic Fiber Optic Adapter/Coupler with Flange

7235002

LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange

7235003

LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange

7235004

SC Plastic Fiber Optic Adapter/Coupler with Legs

7235005

SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange

7235006

SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange

7235007

SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange

7235008

SC-FC SX Hybrid Fiber Optic Adapter/Coupler

7235009

SC-FC DX Hybrid Fiber Optic Adapter/Coupler

7235010

FC-ST SX Hybrid Fiber Optic Adapter/Coupler

7235011

FC-ST DX Hybrid Fiber Optic Adapter/Coupler

7235012

SC-LC SX Hybrid Fiber Optic Adapter/Coupler

7235013

SC-LC DX Hybrid Fiber Optic Adapter/Coupler

7235014

SC-ST SX Hybrid Fiber Optic Adapter/Coupler

7235015

SC-ST DX Hybrid Fiber Optic Adapter/Coupler

7235016

FC SX Big D-Type Fiber Optic Adapter/Coupler

7235017

FC SX With Rectangle Flange Fiber Optic Adapter/Coupler

7235018

FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector

Used in LC fiber optic interfaces to connect SFP module connectors. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector

Used in SC fiber optic interfaces. Similar appearance to RJ-45 but flatter profile with copper column contacts instead of thin copper pins.

FC Connector

Used in FC fiber optic interfaces. Features metal sleeve reinforcement and turnbuckle fastening mechanism. Typically used on ODF distribution frames.

ST Connector

Used in ST fiber optic interfaces. Round shell design with turnbuckle fastening. Commonly used in fiber distribution frames and for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing solutions.

Customized Logo
Label/PE bag/Carton design
