LC APC QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , Wide Operating Temperature LC APC QUAD Adapter

Product Description

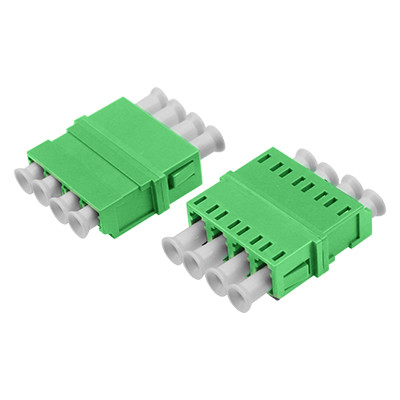

LC APC QUAD Asymmetric Welding Adapter Without Flange

Product Overview

Precision fiber optic adapter designed for LC APC QUAD asymmetric welding applications without flange. This component ensures optimal light transmission with minimal signal loss.

Zion Product Information

Zion Code	Zion Description
7235009	LC APC QUAD Asymmetric Welding Adapter Without Flange

Applications

Precisely links two fiber optic connectors to maximize light transmission
Minimizes signal loss through precision engineering
Features low insertion loss, excellent interchangeability and reproducibility
Each adapter undergoes functional testing before shipping

Product Description

This fiber optic adapter enables connection of same or different fiber optic active connectors within fiber lines. It ensures uninterrupted optical pathways with minimal signal degradation by precisely aligning fiber end faces to maximize light energy output and coupling efficiency.

Key features include:

High flame retardancy for safety compliance
Low insertion loss for optimal performance
High durability for long-term reliability
Wide operating temperature range (-40°C to +85°C)
Suitable for telecommunications networks, cable television networks, user loop systems, and local area networks

Also known as a fiber optic coupler, this device is designed to terminate or link fiber optic cables and connectors between two fiber optic lines.

LC APC QUAD Asymmetric Welding Adapter With Flange

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC
Operating Wavelength (nm)	1310-1550 (SM/OS2) \| 850-1300 (MM/OM1,2,3,4)
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C

Zion Communication Fiber Optic Adapter Products

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector

Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector

Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts. Widely used in network applications.

FC Connector

Used in FC optical fiber interface with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.

ST Connector

Used in ST optical fiber interface with round shell and turnbuckle fastening. Common in fiber distribution frames and 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:

Customized Logo
Label/PE bag/Carton design
