LC APC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , Wide Operating Temperature LC APC Adapter

Product Description

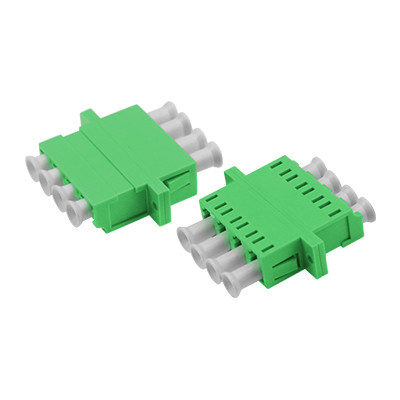

LC APC QUAD Asymmetric Welding Adapter With Flange

Fiber Optic Adapter - SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

Product Identification

Zion Code	Zion Description
7235008	LC APC QUAD Asymmetric Welding Adapter With Flange

Applications

Fiber optic adapters precisely link two connectors to maximize light transmission and minimize signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing prior to shipment.

Product Description

Fiber optic adapters enable connection between the same or different fiber optic active connectors within fiber lines, ensuring uninterrupted optical pathways with minimal loss. By precisely aligning fiber end faces, they optimize light energy transmission from output fibers to receiving fibers while minimizing system impact. These passive optical components serve telecommunications networks, cable television networks, user loop systems, and local area networks.

Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)	1310-1550 \| 850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating loss (dB)	≤ 0.2
Durability	The change of 500 interpolation times is less than 0.20dB
Number of channels	Single core, Dual core, 4 core
Frame material	Metal or Plastic
Sleeve material	Ceramic or Metal
Operating Temperature (℃)	-40 ~ +85
Storage Temperature (℃)	-40 ~ +85

Related Fiber Optic Adapter Products

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

	LC Connector: Used in LC optical fiber interface to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
	SC Connector: Used in SC fiber optic interface, resembling RJ-45 interface but flatter with copper column contacts instead of thin copper pins.
	FC Connector: Used in FC optical fiber interface with metal sleeve external reinforcement and turnbuckle fastening. Typically used on ODF side (distribution frames).
	ST Connector: Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team. Customization options include:

Customized Logo
Label/PE bag/Carton design
