LC APC DX Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	Symmetry Type Fiber Optic Adapter

Product Description

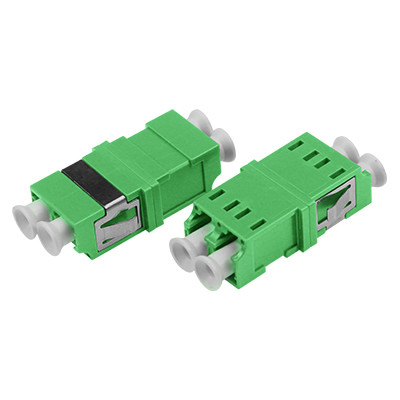

LC APC DX Welding Symmetry Type Adapter Without Flange

This fiber optic adapter provides precise connection between LC APC DX connectors, designed for welding symmetry applications without flange mounting.

Product Identification

Zion Code	Zion Description
7235007	LC APC DX Welding Symmetry-type Adapter Without Flange

Applications

Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Every adapter undergoes functional testing before shipment to ensure optimal performance.

Product Description

Fiber optic adapters enable connection between same or different fiber optic active connectors within fiber lines. They maintain uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces to maximize light energy transmission from output fibers to receiving fibers. The minimal impact on optical links makes them ideal for telecommunications networks, cable television systems, user loop networks, and local area networks.

Hangzhou Zion Communication's fiber optic adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range, making them the optimal choice for demanding applications.

Also known as fiber optic couplers, these compact devices terminate or link fiber optic cables and connectors between fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60	PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 ~ +85
Storage Temperature (°C)	-40 ~ +85

Related LC-LC Fiber Optical Adapters

7235001: LC APC DX Asymmetric Welding Adapter With Flange
7235002: LC APC DX Asymmetric Welding Adapter Without Flange
7235003: LC APC DX High-Low Adapter
7235004: LC APC DX One-piece Adapter With Flange
7235005: LC APC DX One-piece Adapter Without Flange
7235006: LC APC DX Welding Symmetry-type Adapter With Flange
7235007: LC APC DX Welding Symmetry-type Adapter Without Flange
... and 60+ additional variants

Connector Types

LC Connector

Used in LC optical fiber interfaces to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector

Used in SC fiber optic interfaces, resembling RJ-45 but flatter with copper column contacts instead of thin copper pins.

FC Connector

Features external metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF sides, most commonly in distribution frames.

ST Connector

Round-shell connector with turnbuckle fastening. Commonly used in fiber distribution frames and for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom solutions.

Customized Logo
Label/PE bag/Carton design
