Home > Products> Optical Fiber System> LC APC DX Welding Symmetry-type Fiber Optic Adapter with Flange ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve

LC APC DX Welding Symmetry-type Fiber Optic Adapter with Flange ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , Welding Symmetry-type LC APC Adapter

Product Description

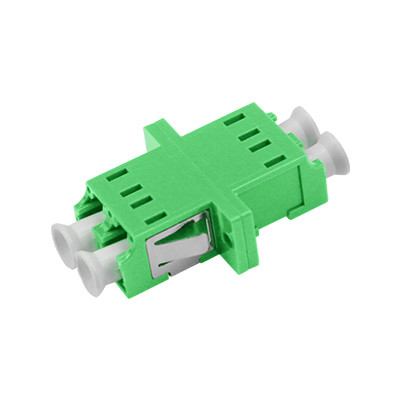

LC APC DX Welding Symmetry-type Adapter With Flange

Product Overview

Precision fiber optic adapter designed to connect LC APC connectors with welding symmetry and flange mounting. Ensures optimal light transmission with minimal signal loss.

Zion Product Information

Zion Code	Zion Description
7235006	LC APC DX Welding Symmetry-type Adapter With Flange

Applications

By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted efficiently while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and high reproducibility. Each adapter undergoes functional testing before shipping.

Product Description

Fiber optic adapters enable connection between the same or different fiber optic active connectors in fiber lines. They ensure uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces to maximize light energy transmission and coupling efficiency. These passive components are ideal for telecommunications networks, cable television networks, user loop systems, and local area networks.

Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.

Product Dimensions

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related Fiber Optic Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector
Used in LC optical fiber interfaces to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector
Used in SC fiber optic interfaces. Similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.

FC Connector
Used in FC optical fiber interfaces. Features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.

ST Connector
Used in ST optical fiber interfaces. Features a round shell with turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team and extensive manufacturing experience.

Customized Logo
Label/PE bag/Carton design
