Product Overview

Precision fiber optic adapter designed for optimal light transmission with minimal loss. Features high flame retardancy, low insertion loss, and excellent durability for reliable performance in demanding environments.

Zion Product Information

Zion Code	Zion Description

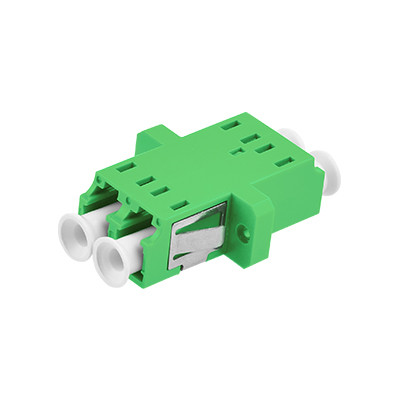

7235004	LC APC DX One-piece Adapter With Flange

Applications

By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted efficiently while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and reproducibility. Each adapter undergoes functional testing before shipping.

Product Description

This fiber optic adapter enables connection between the same or different fiber optic active connectors in fiber lines. It ensures uninterrupted optical pathways with minimal signal loss by precisely aligning fiber end faces to maximize light energy transmission and coupling efficiency.

Key Features:

High flame retardancy for safety
Low insertion loss for optimal performance
High durability for long-term reliability
Wide operating temperature range (-40°C to +85°C)
Available in single core, dual core, and 4 core configurations

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related Fiber Optic Adapters

7235001
LC SX Plastic Fiber Optic Adapter/Coupler with Flange

7235002
LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange

7235003
LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange

7235004
SC Plastic Fiber Optic Adapter/Coupler with Legs

Connector Types

LC Connector
Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector
Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts instead of thin copper contacts.

FC Connector
Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF side (distribution frames).

ST Connector
Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team, including:

Customized Logo
Label/PE bag/Carton design

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , Wide Operating Temperature LC APC Adapter

LC APC DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 to +85℃)

≤ 0.2dB Alternating Loss Fiber Optic Adapter

Ceramic or Metal Sleeve Optical Coupler

Wide Operating Temperature LC APC Adapter
