| Material: | CRS Cold Rolled Steel | Enclosure Type: | 19" Rack Mountable |
|---|---|---|---|
| Installation: | Standard EIA 19" Rack | Dimensions (HxWxD): | 482*253*44.3mm |
Optical Network Frame management system
FTTX project
Data processing centers/Cable television (CATV)
Other applications in Fiber optical systems
Fiber patch panel Drawing
| Features: | |||||||||
| • Standard size, light weight and reasonable structure | |||||||||
| • Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation | |||||||||
• Suitable for ribbon and single fiber |
|||||||||
| • The box has a pothook, which is convenient to install and dismantle | |||||||||
| • Various panel plate to fit different adapter interface | |||||||||
| • Compact design for space saving | |||||||||
| • Easy for management and operation | |||||||||
| • The box is of unique structure, reasonable layout, and has adequate room for operation | |||||||||
| • The indoor type is of excellent seal performance, which could prevent water from entering effectively |
| Products Description: | |||||||||
| The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements. | |||||||||
| OMC provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC/FC/ST/E2000/MPO adapter, the box can be installed on the indoor wall and terrace. | |||||||||

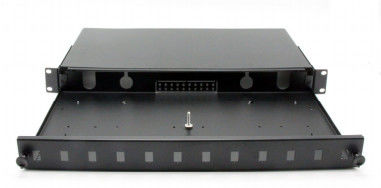

| The Rack Mount Fiber Optic Patch Panel are 19" inch size and modular design. clamshell-type Rack-Mount Panel provides a simple, high-density, low profile solution for easy access and management of fiber optic terminations. It comes with a number of cable management devices for organizing cables entering and exiting the panel. This Patch Panel are equipped with slack-fiber storage spools, and Splicing tray. Each enclosure features front and rear removable metal covers for quick and easy installation and maintenance. |
| Specification: | |||||||||
| Company Code | 7244211 | ||||||||
| Material | CRS Cold rolled steel | ||||||||
| Enclosure Type | 19" Rack Mountable | ||||||||
| Installation | Standard EIA 19" Rack | ||||||||
| Compliant | TIA/EIA-568-C.3 | ||||||||
| Connection Port | 2 –24 Ports SC/FC/ST/LC/ ST/E2000/MPO |
||||||||
| Dimensions (HxWxD) | 482*253*44.3mm | ||||||||
| Application | Telecommunication | ||||||||
| Place of Origin | ZheJiang, China | ||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||||
| MOQ | 50pcs | ||||||||
| Application: | |||||||||
| ● Optical Network Frame management system | |||||||||
| ● FTTX project | |||||||||
| ● Data processing centers/Cable television (CATV) | |||||||||
| ● Other applications in Fiber optical systems |
Zion Communication's Hot Fiber patch panel
| Zion Code | Product Code | Zion Description | |||||||
| 7244201 | ZCL20X00 | 1U 19" Empty Fixed Rack mount Fiber patch panel | |||||||
| 7244202 | ZCL40X00 | 2U 19" Empty Fixed Rack mount Fiber patch panel | |||||||
| 7244203 | ZCL2XX11 | 1U 19" Full Loaded Fixed Rack mount Fiber patch panel | |||||||
| 7244204 | ZCL4XX11 | 2U 19" Full Loaded Fixed Rack mount Fiber patch panel | |||||||
| 7244205 | ZCL30X00 | 1U 19" Empty Slide Rail Rack mount patch panel | |||||||
| 7244206 | ZCL50X00 | 2U 19" Empty Slide Rail Rack mount patch panel | |||||||
| 7244207 | ZCLT0X00 | 3U 19" Empty Slide Rail Rack mount patch panel | |||||||
| 7244208 | ZCL3XX11 | 1U 19" Full Loaded Slide Rail Rack mount patch panel | |||||||
| 7244209 | ZCL50X11 | 2U 19" Full Loaded Slide Rail Rack mount patch panel | |||||||
| 7244210 | ZCLT0X11 | 3U 19" Full Loaded Slide Rail Rack mount patch panel | |||||||
| 7244211 | ZCL80X00 | 1U 19" Empty Slide Drawer Rack mount patch panel | |||||||
| 7244212 | ZCL8XX11 | 1U 19" Full Loaded Slide Drawer Rack mount patch panel | |||||||
| 7244213 | ZCLP0X00 | 1U 19" Empty Side pull out Rack mount Patch panel | |||||||
| 7244214 | ZCLPXX11 | 1U 19" Full Loaded Side pull out Rack mount Patch panel | |||||||
