2U 19inch Full Loaded Slide Rail Rack mount patch panel

Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Material: CRS Cold Rolled Steel Enclosure Type: 19" Rack Mountable
Installation: Standard EIA 19" Rack Dimensions (HxWxD): 485*350*89mm

Product Description

Optical Network Frame management system
FTTX project
Data processing centers/Cable television (CATV)
Other applications in Fiber optical systems



2U 19" Full Loaded Slide Rail Rack mount patch panel (7244209)

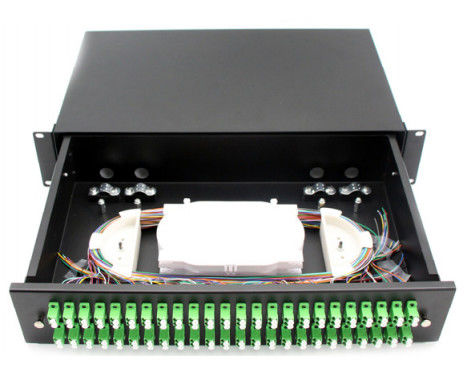

2U 19inch Full Loaded Slide Rail Rack mount patch panel 1



Slide type Rack Mount Patch Panel



2U 19inch Full Loaded Slide Rail Rack mount patch panel 2





Application:
● Optical Network Frame management system
● FTTX project
● Data processing centers/Cable television (CATV)

● Other applications in Fiber optical systems





Features:
• Standard size, light weight and reasonable structure
• Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation

• Suitable for ribbon and single fiber
• The box has a pothook, which is convenient to install and dismantle
• Various panel plate to fit different adapter interface
• Compact design for space saving
• Easy for management and operation
• The box is of unique structure, reasonable layout, and has adequate room for operation
• The indoor type is of excellent seal performance, which could prevent water from entering effectively







Products Description:
The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
OMC provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC/FC/ST/E2000/MPO adapter, the box can be installed on the indoor wall and terrace.
The Rack Mount Fiber Optic Patch Panel are 19" inch size and modular design. clamshell-type
Rack-Mount Panel provides a simple, high-density, low profile solution for easy access and management of fiber optic terminations. It comes with a number of cable management devices for organizing cables entering and exiting the panel. This Patch Panel are equipped with slack-fiber storage spools, and Splicing tray. Each enclosure features front and rear removable metal covers for quick and easy installation and maintenance.





FC/SC/ST/LC Others Adapters for Option, available:



2U 19inch Full Loaded Slide Rail Rack mount patch panel 3





Specification:
Company Code 7244209
Material CRS Cold rolled steel
Enclosure Type 19" Rack Mountable
Installation Standard EIA 19" Rack
Compliant TIA/EIA-568-C.3
Connection Port 2 –48 Ports SC/FC/ST/LC/
ST/E2000/MPO
Dimensions (HxWxD) 485*350*89mm
Application Telecommunication
Place of Origin ZheJiang, China
Brand HELLOSIGNAL® OR OEM
Delivery time Normally 25 days after received the deposit.
MOQ 50pcs





Full loaded accessories





2U 19inch Full Loaded Slide Rail Rack mount patch panel 4









Zion Communication's Hot Fiber patch panel



Zion Code Product Code Zion Description
7244201 ZCL20X00 1U 19" Empty Fixed Rack mount Fiber patch panel
7244202 ZCL40X00 2U 19" Empty Fixed Rack mount Fiber patch panel
7244203 ZCL2XX11 1U 19" Full Loaded Fixed Rack mount Fiber patch panel
7244204 ZCL4XX11 2U 19" Full Loaded Fixed Rack mount Fiber patch panel
7244205 ZCL30X00 1U 19" Empty Slide Rail Rack mount patch panel
7244206 ZCL50X00 2U 19" Empty Slide Rail Rack mount patch panel
7244207 ZCLT0X00 3U 19" Empty Slide Rail Rack mount patch panel
7244208 ZCL3XX11 1U 19" Full Loaded Slide Rail Rack mount patch panel
7244209 ZCL50X11 2U 19" Full Loaded Slide Rail Rack mount patch panel
7244210 ZCLT0X11 3U 19" Full Loaded Slide Rail Rack mount patch panel
7244211 ZCL80X00 1U 19" Empty Slide Drawer Rack mount patch panel
7244212 ZCL8XX11 1U 19" Full Loaded Slide Drawer Rack mount patch panel
7244213 ZCLP0X00 1U 19" Empty Side pull out Rack mount Patch panel
7244214 ZCLPXX11 1U 19" Full Loaded Side pull out Rack mount Patch panel





Naming Rules&Order Confirmation Information:
