1U 19" Full Loaded Slide Rail Rack Mount Fiber Optic Patch Panel with Cold Rolled Steel Construction

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Material:

CRS Cold Rolled Steel

Enclosure Type:

19" Rack Mountable

Installation:

Standard EIA 19" Rack

Dimensions (HxWxD):

485*350*44.5mm

Highlight:

1U 19" Rack Mountable Fiber Optic Patch Panel

Full Loaded Slide Rail Rack Mount Patch Panel

Cold Rolled Steel Construction Slide Rail Patch Panel

Product Description

1U 19-Inch Full Loaded Slide Rail Rack Mount Patch Panel

Fiber Optic Patch Panel

Optical Network Frame management system

FTTX project

Data processing centers/Cable television (CATV)

Other applications in Fiber optical systems

Inquire Now 1U 19" Full Loaded Slide Rail Rack Mount Fiber Optic Patch Panel with Cold Rolled Steel Construction 0

Product Overview

1U 19" Full Loaded Slide Rail Rack mount patch panel (7244208)

Slide Type Rack Mount Patch Panel

Applications

Optical Network Frame management system
FTTX project
Data processing centers/Cable television (CATV)
Other applications in Fiber optical systems

Key Features

Standard size, light weight and reasonable structure
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
Suitable for ribbon and single fiber
The box has a pothook, which is convenient to install and dismantle
Various panel plate to fit different adapter interface
Compact design for space saving
Easy for management and operation
The box is of unique structure, reasonable layout, and has adequate room for operation
The indoor type is of excellent seal performance, which could prevent water from entering effectively

Product Description

The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.

OMC provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC/FC/ST/E2000/MPO adapter, the box can be installed on the indoor wall and terrace.

The Rack Mount Fiber Optic Patch Panel are 19" inch size and modular design. clamshell-type Rack-Mount Panel provides a simple, high-density, low profile solution for easy access and management of fiber optic terminations. It comes with a number of cable management devices for organizing cables entering and exiting the panel. This Patch Panel are equipped with slack-fiber storage spools, and Splicing tray. Each enclosure features front and rear removable metal covers for quick and easy installation and maintenance.

Available Adapter Options

FC/SC/ST/LC Others Adapters for Option, available:

Technical Specifications

Parameter	Specification
Company Code	7244208
Material	CRS Cold rolled steel
Enclosure Type	19" Rack Mountable
Installation	Standard EIA 19" Rack
Compliant	TIA/EIA-568-C.3
Connection Port	2 -24 Ports SC/FC/ST/LC/ST/E2000/MPO
Dimensions (HxWxD)	48535044.5mm
Application	Telecommunication
Place of Origin	ZheJiang, China
Brand	HELLOSIGNAL® OR OEM
Delivery time	Normally 25 days after received the deposit
MOQ	50pcs

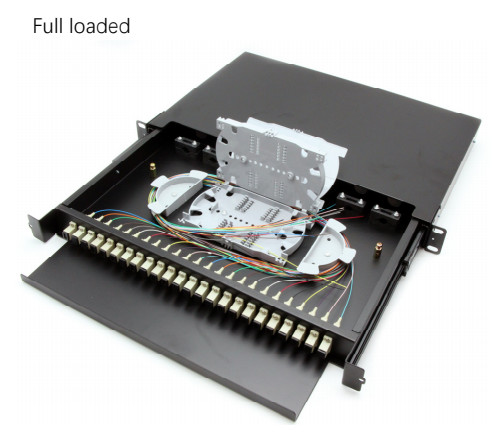

Full Loaded Accessories

Related Product Line

Zion Code	Product Code	Description
7244201	ZCL20X00	1U 19" Empty Fixed Rack mount Fiber patch panel
7244202	ZCL40X00	2U 19" Empty Fixed Rack mount Fiber patch panel
7244203	ZCL2XX11	1U 19" Full Loaded Fixed Rack mount Fiber patch panel
7244204	ZCL4XX11	2U 19" Full Loaded Fixed Rack mount Fiber patch panel
7244205	ZCL30X00	1U 19" Empty Slide Rail Rack mount patch panel
7244206	ZCL50X00	2U 19" Empty Slide Rail Rack mount patch panel
7244207	ZCLT0X00	3U 19" Empty Slide Rail Rack mount patch panel
7244208	ZCL3XX11	1U 19" Full Loaded Slide Rail Rack mount patch panel
7244209	ZCL50X11	2U 19" Full Loaded Slide Rail Rack mount patch panel
7244210	ZCLT0X11	3U 19" Full Loaded Slide Rail Rack mount patch panel
7244211	ZCL80X00	1U 19" Empty Slide Drawer Rack mount patch panel
7244212	ZCL8XX11	1U 19" Full Loaded Slide Drawer Rack mount patch panel
7244213	ZCLP0X00	1U 19" Empty Side pull out Rack mount Patch panel
7244214	ZCLPXX11	1U 19" Full Loaded Side pull out Rack mount Patch panel
