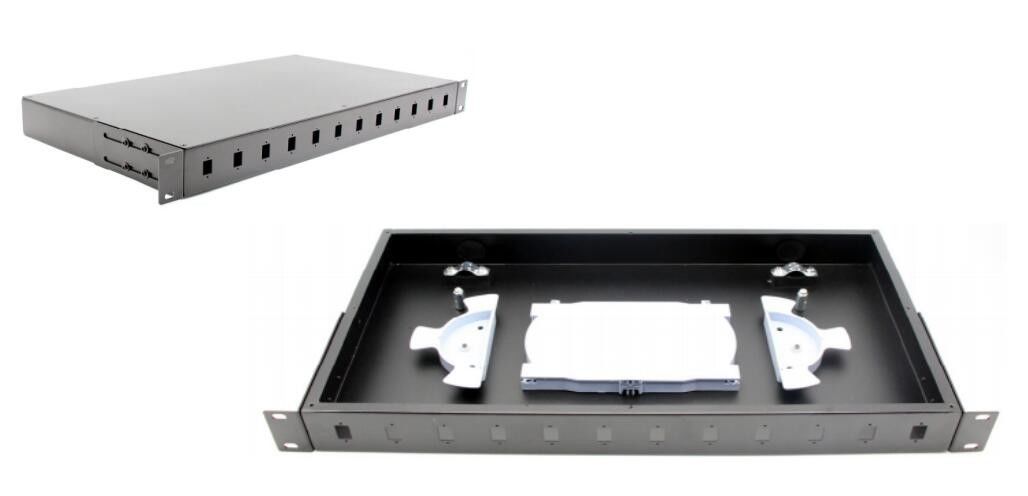

1U Height 19 Inch Rack Mountable Fiber Patch Panel Made of Cold Rolled Steel for Optical Network Management

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Material:

CRS Cold Rolled Steel

Enclosure Type:

19" Rack Mountable

Installation:

Standard EIA 19" Rack

Dimensions (HxWxD):

482*245*44.5mm

Highlight:

1U Height Fiber Patch Panel

19 Inch Rack Mountable Fiber Patch Panel

Cold Rolled Steel Fiber Patch Panel

Product Description

1U 19-Inch Empty Fixed Rack Mount Fiber Patch Panel

Professional fiber optic management solution for organizing and protecting fiber links in telecommunications networks.

Inquire Now

Applications

Optical Network Frame management system
FTTX project implementation
Data processing centers and Cable television (CATV)
Other fiber optical system applications

Key Features

Standard Design
Standard size, lightweight construction with reasonable structure

Durable Materials
Cold-rolled steel with static plastic spraying, compact dimensions

Fiber Compatibility
Suitable for both ribbon and single fiber configurations

Easy Installation
Pothook design for convenient installation and dismantling

Modular Flexibility
Various panel plates to fit different adapter interfaces

Space Efficient
Compact design optimized for space saving in rack installations

Optimal Layout
Unique structure with reasonable layout and adequate operation room

Product Description

The Fiber Optic Patch Panel is a professional fiber management product designed to distribute and protect optical fiber links in FTTH networks. Ideal for distribution and terminal connection across various fiber optic systems, these units accommodate the most common distribution requirements.

Manufactured from high-quality cold-rolled steel sheet with static plastic spraying treatment, this micro-sized patch panel supports mounting of SC/LC/FC/ST/E2000/MPO adapters. Suitable for indoor wall and terrace installations.

The 19-inch rack mount fiber optic patch panel features a modular, clamshell-type design providing a simple, high-density, low-profile solution for easy access and management of fiber optic terminations. Equipped with comprehensive cable management devices, slack-fiber storage spools, and splicing trays. Each enclosure includes front and rear removable metal covers for quick installation and maintenance.

Technical Specifications

Company Code

7244201

Material

CRS Cold rolled steel

Enclosure Type

19" Rack Mountable

Installation

Standard EIA 19" Rack

Compliant

TIA/EIA-568-C.3

Connection Port

2-24 Ports SC/FC/ST/LC/ST/E2000/MPO

Dimensions (HxWxD)

482×245×44.5mm

Application

Telecommunication

Place of Origin

ZheJiang, China

Brand

HELLOSIGNAL® OR OEM

Delivery Time

Normally 25 days after received the deposit

Minimum Order Quantity

50pcs

Standard Accessories

Screw and nut set
Metal ear (2 pieces)
Splice tray
Sheet metal (4 pieces)
Small metal columns (2 pieces)

Related Fiber Patch Panel Products

Zion Code	Product Code	Description
7244201	ZCL20X00	1U 19" Empty Fixed Rack mount Fiber patch panel
7244202	ZCL40X00	2U 19" Empty Fixed Rack mount Fiber patch panel
7244203	ZCL2XX11	1U 19" Full Loaded Fixed Rack mount Fiber patch panel
7244204	ZCL4XX11	2U 19" Full Loaded Fixed Rack mount Fiber patch panel
7244205	ZCL30X00	1U 19" Empty Slide Rail Rack mount patch panel
7244206	ZCL50X00	2U 19" Empty Slide Rail Rack mount patch panel
7244207	ZCLT0X00	3U 19" Empty Slide Rail Rack mount patch panel
7244208	ZCL3XX11	1U 19" Full Loaded Slide Rail Rack mount patch panel
7244209	ZCL50X11	2U 19" Full Loaded Slide Rail Rack mount patch panel
7244210	ZCLT0X11	3U 19" Full Loaded Slide Rail Rack mount patch panel
7244211	ZCL80X00	1U 19" Empty Slide Drawer Rack mount patch panel
7244212	ZCL8XX11	1U 19" Full Loaded Slide Drawer Rack mount patch panel
7244213	ZCLP0X00	1U 19" Empty Side pull out Rack mount Patch panel
7244214	ZCLPXX11	1U 19" Full Loaded Side pull out Rack mount Patch panel
