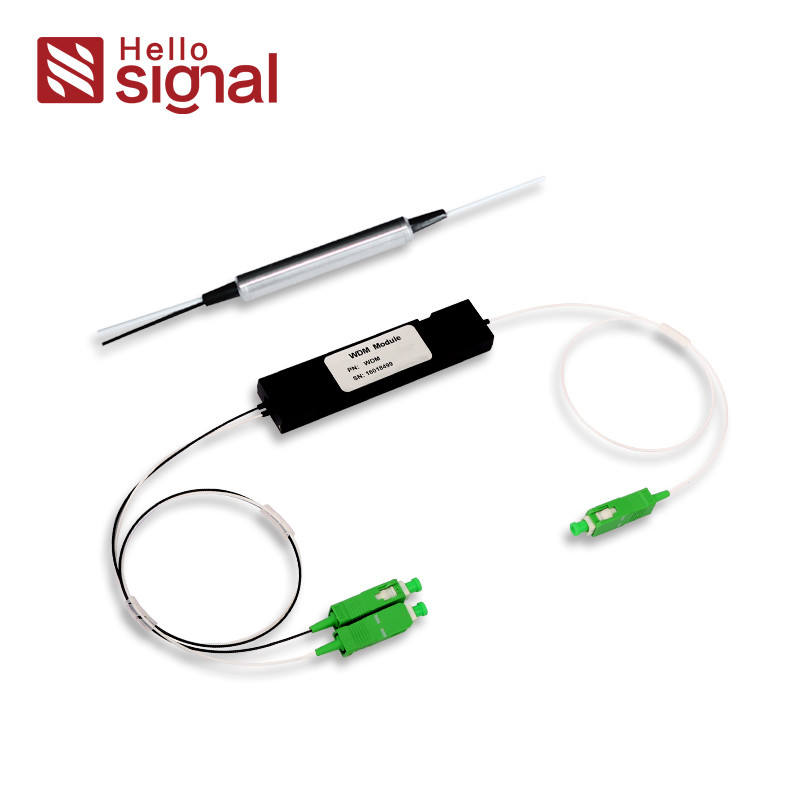

3 Ports 1310/1490/1550nm Filter Wavelength Division Multiplexer with Low Insertion Loss High Channel Isolation and Epoxy Free Optical Path

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Insertion Loss Temperature Sensitivity (dB):	≤0.3	Polarization Dependent Loss (dB):	≤0.1
Directivity (dB):	≥50	Return Loss (dB):	≥45
Maximum Power Handling (mW):	300
Highlight:	Low Insertion Loss Filter Wavelength Division Multiplexer , High Channel Isolation FWDM , Epoxy Free on Optical Path Optical Multiplexer

Product Description

3 Ports 1310/1490/1550nm Filter Wavelength Division Multiplexer

FWDM Features

Wide operating wavelength range
Low insertion loss
Ultra flat wide passband
High channel isolation
High stability and reliability
Epoxy free on optical path

Features

Wide operating wavelength range
Low insertion loss

Applications

Testing instrument
FTTH tri-play system

Performance Specifications

Parameter	FWDM4/35	FWDM5/34	FWDM34/5
Pass Channel Wavelength Range (nm)	1480~1500	1540~1560	1260~1360 & 1480~1500
Reflect Channel Wavelength Range (nm)	1260~1360	1260~1360	1540~1560
Isolation (dB) - Pass Channel	≤0.6
Isolation (dB) - Reflect Channel	≤0.4
Insertion Loss Temperature Sensitivity (dB)	≤0.3
Polarization Dependent Loss (dB)	≤0.1
Polarization Mode Dispersion (ps)	≤0.1
Directivity (dB)	≥50
Return Loss (dB)	≥45
Maximum Power Handling (mW)	300
Operating Temperature (℃)	-10~+70
Storage Temperature (℃)	-40~+85
Package Dimension (mm) - For 250μm, 900μm	∅5.5×L38
Package Dimension (mm) - For 2.0mm, 3.0mm	L90 x W20 ×H10

Above specifications are for devices without connector. Specifications may change without notice.

Ordering Information

FWDM	Wavelength	Package	Fiber Diameter	Fiber Length	Connector
Options	4/35=1490 pass/1310&1550 reflect	1=Steel Tube	0=250μm	1=1m	O=None
	5/34=1550 pass/1310&1490 reflect	2=ABS Box Module	1=900μm	2=2m	1=FC/APC
	34/5=1310&1490 pass/1550 reflect	3=Specify	2=2.0mm	S=Specify	2=FC/UPC
			3=3.0mm		3=SCI/APC
					4=SC/UPC
					5=LC/APC
					6=LC/UPC
					7=ST
					S=Specify
