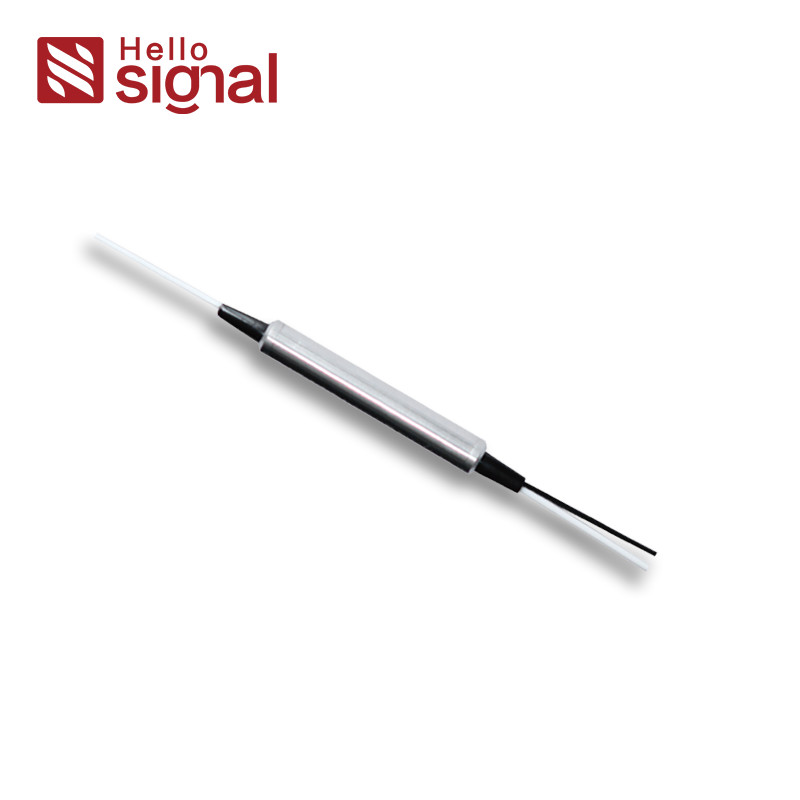

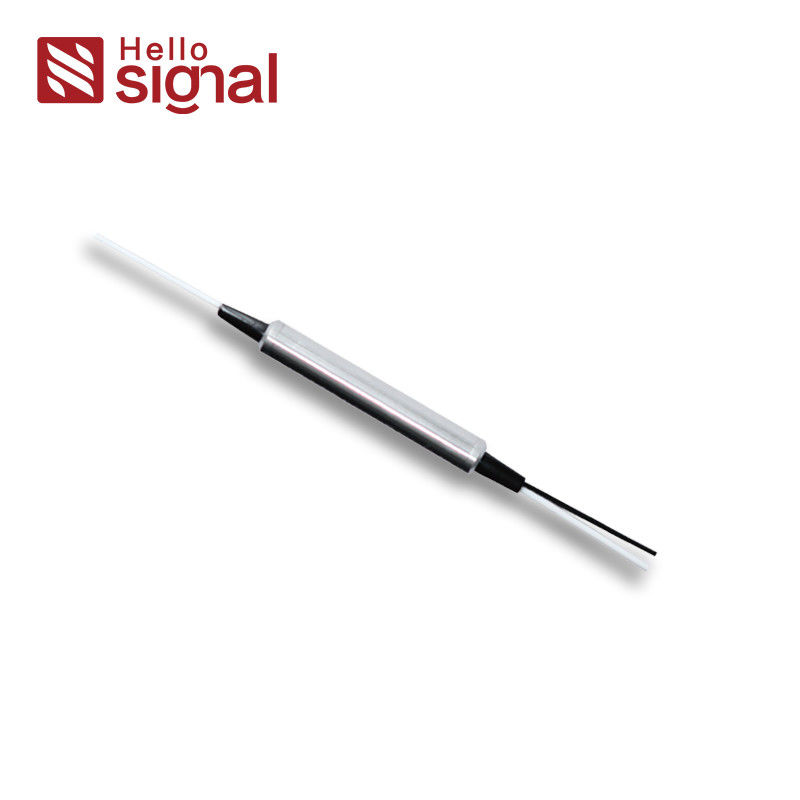

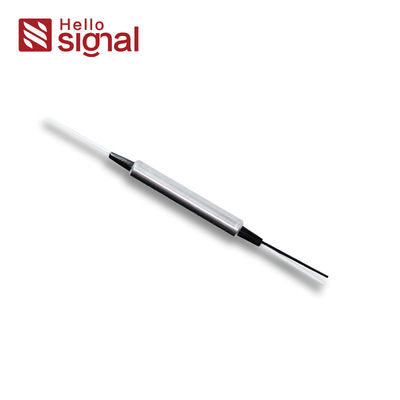

3 Ports SM MM 1310-1550nm Filter Wavelength Division Multiplexer with Low Insertion Loss

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Pass Channel Wavelength Range (nm):	1270~1610 Or 1271~1611	Reflect Channel Wavelength Range (nm):	20
Directivity (dB):	≥50	Return Loss (dB):	≥45
Maximum Power Handling (mW):	300
Highlight:	3 Ports Wavelength Division Multiplexer , 1310-1550nm Filter WDM , Low Insertion Loss Optical Multiplexer

Product Description

3 Ports SM, MM 1310-1550nm Filter Wavelength Division Multiplexer

CWDM Technology

Low insertion loss

Wide pass band

High channel isolation 1.02±0.05 mm HDPE

High stability and reliability Modified Polyethylene

Epoxy free on optical path PET Foil

Product Features & Applications

Key Features

Wide operating wavelength range
Low insertion loss
Ultra flat wide passband
High channel isolation
High stability and reliability
Epoxy free on optical path

Applications

System monitoring
WDM system
Transmitter and fiber laser
Fiber optical amplifier
Fiber optic instrument

Performance Specifications

Parameter	Specification
Pass Channel Wavelength Range (nm)	1270~1610 or 1271~1611
Reflect Channel Wavelength Range (nm)	20
Isolation (dB) - Pass Channel	≥30
Isolation (dB) - Reflect Channel	≥13
Insertion Loss Temperature Sensitivity (dB)	≤0.3
Polarization Dependent Loss (dB)	≤0.1
Polarization Mode Dispersion (ps)	≤0.1
Directivity (dB)	≥50
Return Loss (dB)	≥45
Maximum Power Handling (mW)	300
Operating Temperature (℃)	-10~+70
Storage Temperature (℃)	-40~+85
Package Dimension (mm) - For 250μm, 900μm	∅5.5×L38
Package Dimension (mm) - For 2.0mm, 3.0mm	L90 x W20 ×H10

Above specifications are for devices without connector. Specifications may change without notice.

Ordering Information

CWDM	□	□□	□	□	□	□
	Wavelength	Package	Fiber Type	Fiber Diameter	Fiber Length	Connector
	C=20nm	1=Steel Tube 2=ABS Box Module 3=Specify	1=SM 9/125 2=MM 50/125 3=MM 62.5/125	0=250μm 1=900μm 2=2.0mm 3=3.0mm	1=1m 2=2m S=Specify	O=None 1=FC/APC 2=FC/UPC 3=SCI/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST s=Specify
