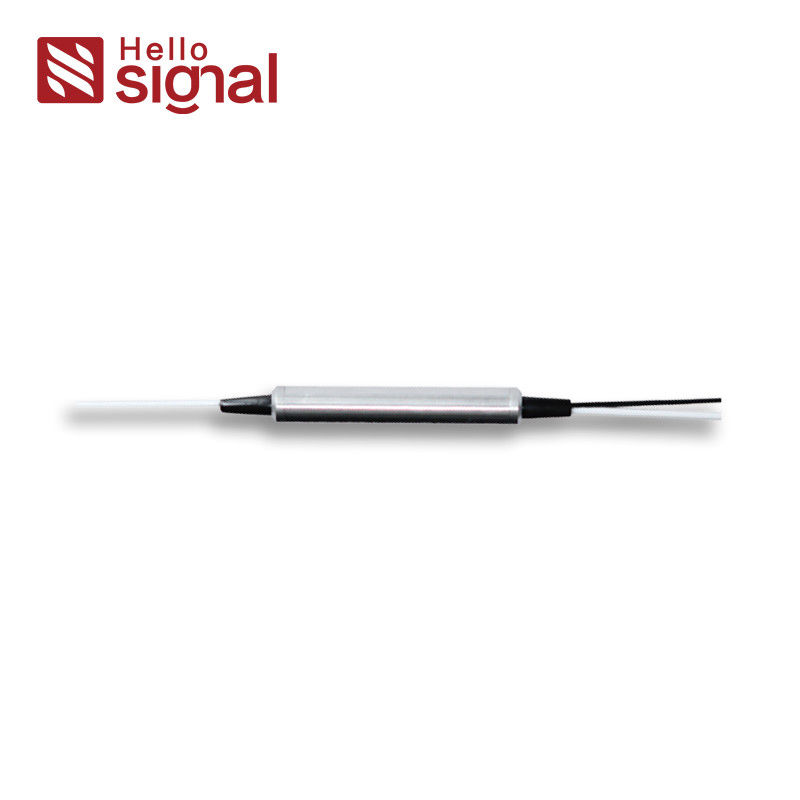

100G, 200G 1X2 DWDM Device (3 Ports)

100G, 200G 1X2 DWDM Device (3 Ports)
100G, 200G 1X2 DWDM Device (3 Ports)
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Center Wavelength (nm): ITU Grid Channel Spacing (GHz): 100 /200
Directivity (dB): ≥45 Return Loss (dB): ≥45
Maximum Power Handling (mW): 300

Product Description



DWDM

  • ITU channel spacing
  • Low insertion loss
  • Wide pass band
  • High channel isolation
  • High stability and reliability
  • Epoxy free on optical path
Inquire Now      100G, 200G 1X2 DWDM Device (3 Ports) 0





3 Ports 100G/200G 1X2 DWDM Device

100G, 200G 1X2 DWDM Device (3 Ports) 1

Features Applications
· Low insertion loss · Channel add/drop
· Wide pass band · DWDM network
· High channel isolation · Wavelength routing
· High stability and reliability · Fiber optical amplifier
· Epoxy free on optical path · CATV fiberoptic system

3 Ports 100G/200G 1X2 DWDM Device Performance Specifications

Parameter Specification
Center Wavelength (nm) ITU Grid
Channel Spacing (GHz) 100 200
Channel Passband (@-0.5dB bandwidth)(nm) ≥0.22 ≥0.5
Pass Channel lnsertion Loss (dB) ≤1.0 ≤0.9
Reflection Channel lnsertion Loss (dB) ≤0.4 ≤0.4
lsolation (dB) Pass Channel ≥30
Reflect Channel ≥13
Insertion Loss Temperature Sensitivity (dB) ≤0.3
Wavelength Temperature Shifting (nm/℃) ≤0.001
Polarization Dependent Loss (dB) ≤0.1
Polarization Mode Dispersion (ps) ≤0.1
Directivity (dB) ≥45
Return Loss (dB) ≥45
Maximum Power Handling (mW) 300
Operating Temperature (℃) -10~+70
Storage Temperature (℃) -40~+85
Package Dimension (mm) For 250μm, 900μm ∅5.5×L38
For 2.0mm. 3.0mm L90 x W20 ×H10

Above specifications are for devices without connector.
Specifications may change without notice.

Ordering Information

CWDM □ □□ □ □ □ □
  ITU Pass Channel Package Fiber Diameter Fiber Length Connector
  1=100G 01=Ch01 1=Steel Tube 0=250μm 1=1m O=None
  2=200G 02=Ch02 2=ABS Box Module 1=900μm 2=2m 1=FC/APC
    ….. 3=Specify 2=2.0mm S=Specify 2=FC/UPC
    60=Ch60   3=3.0mm   3=SCI/APC
            4=SC/UPC
            5=LC/APC
            6=LC/UPC
            7=ST
            s=Specify
