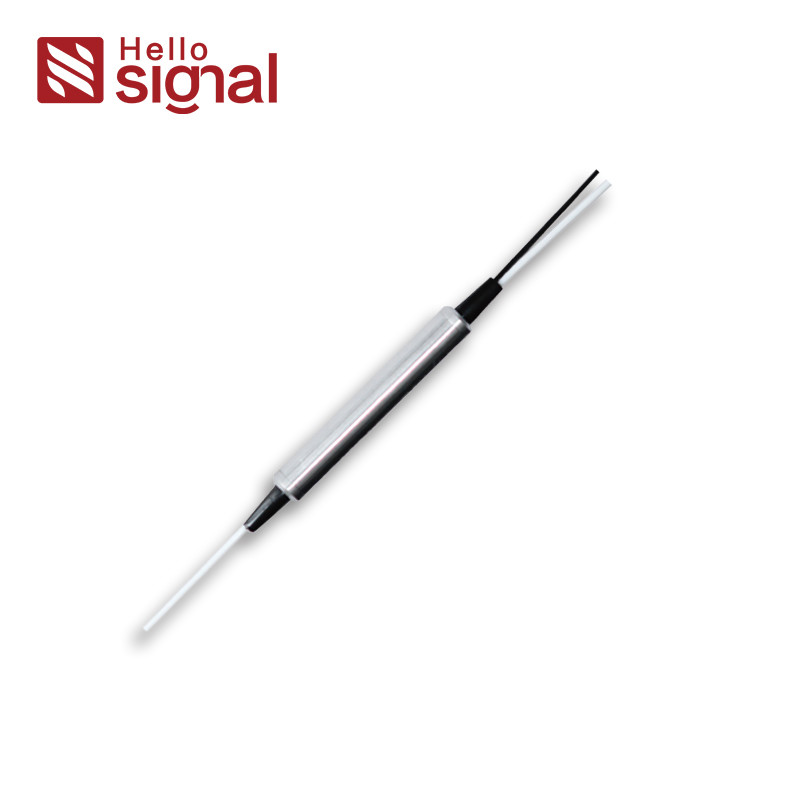

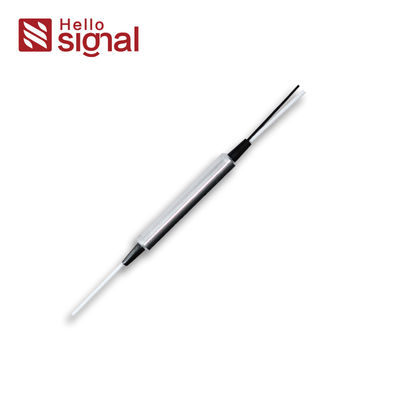

1X2 CWDM Device(3 Ports)

1X2 CWDM Device(3 Ports)
1X2 CWDM Device(3 Ports)
1X2 CWDM Device(3 Ports)
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Center Wavelength (nm): 1270~1610 Or 1271~1611 Channel Spacing (GHz): 20
Channel Passband (@-0.5dB Bandwidth) (nm): ≥13 Directivity (dB): ≥50
Return Loss (dB): ≥45 Maximum Power Handling (mW): 300

Product Description



CWDM

· Low insertion loss
· Wide pass band
· High channel isolation 1.02±0.05 mm HDPE
· High stability and reliability Modified Polyethylene
· Epoxy free on optical path PET Foil

Inquire Now     1X2 CWDM Device(3 Ports) 0







3 Ports 1X2 CWDM Device

1X2 CWDM Device(3 Ports) 1

Features Applications
· Low insertion loss · Line monitoring
· Wide pass band · WDM network
· High channel isolation · Telecommunication
· High stability and reliability · Cellular application
· Epoxy free on optical path · Fiber optical amplifier
  · Access network



Performance Specifications

Parameter Specification
Center Wavelength (nm) 1270~1610 or 1271~1611
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth)(nm) ≥13
Pass Channel lnsertion Loss (dB) ≤0.6
Reflection Channel lnsertion Loss (dB) ≤0.4
lsolation (dB) Pass Channel ≥30
Reflect Channel ≥13
Insertion Loss Temperature Sensitivity (dB) ≤0.3
Wavelength Temperature Shifting (nm/℃) ≤0.002
Polarization Dependent Loss (dB) ≤0.1
Polarization Mode Dispersion (ps) ≤0.1
Directivity (dB) ≥50
Return Loss (dB) ≥45
Maximum Power Handling (mW) 300
Operating Temperature (℃) -10~+70
Storage Temperature (℃) -40~+85
Package Dimension (mm) For 250μm, 900μm ∅5.5×L38
For 2.0mm. 3.0mm L90 x W20 ×H10

Above specifications are for devices without connector.
Specifications may change without notice.



Ordering Information

CWDM □ □□ □ □ □ □
  Channel Spacing Pass Channel Package Fiber Diameter Fiber Length Connector
  C=20nm 27=1270nm 1=Steel Tube 0=250μm 1=1m O=None
    …… 2=ABS Box Module 1=900μm 2=2m 1=FC/APC
    47=1470nm 3=Specify 2=2.0mm S=Specify 2=FC/UPC
    49=1490nm   3=3.0mm   3=SCI/APC
    ……       4=SC/UPC
    61=1610nm       5=LC/APC
            6=LC/UPC
            7=ST
            s=Specify
