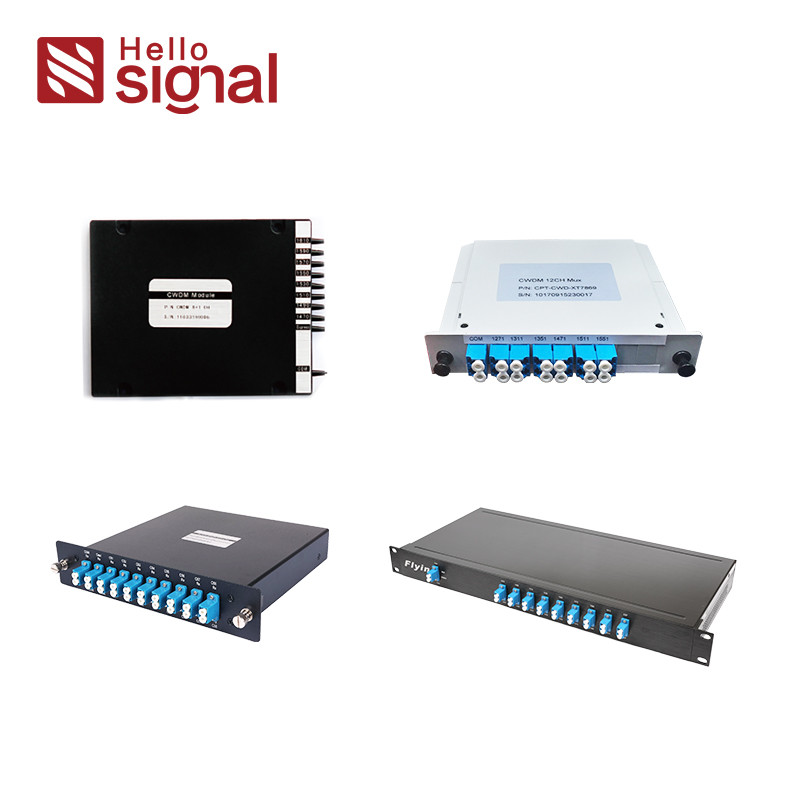

4,8,16-Channel CWDM Module

4,8,16-Channel CWDM Module
4,8,16-Channel CWDM Module
4,8,16-Channel CWDM Module
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Center Wavelength (nm): 1270~1610 Or 1271~1611 Channel Spacing (GHz): 20
Channel Passband (@-0.5dB Bandwidth) (nm): ≥13 Directivity (dB): ≥50
Return Loss (dB): ≥45 Maximum Power Handling (mW): 300

Product Description



DWDM

  • ITU channel spacing
  • Low insertion loss
  • Wide pass band
  • High channel isolation
  • High stability and reliability
  • Epoxy free on optical path
Inquire Now      4,8,16-Channel CWDM Module 0





4/8/16 Channel CWDM Module



Features

Applications
· Low insertion loss · Line monitoring
· Wide pass band · WDM network
· High channel isolation · Telecommunication
· High stability and reliability · Cellular application
· Epoxy free on optical path · Fiber optical amplifier
  · Access network



Performance Specifications
Parameter 4 Channels 8 Channels 16 Channels
Mux Demux Mux Demux Mux Demux
Center Wavelength (nm) 1270~1610 or 1271~1611
Channel Spacing (GHz) 20
Channel Passband (@-0.5dB bandwidth) (nm) ≥13
lnsertion Loss (dB) ≤1.5 ≤2.5 LoW <3.5 Standard<4.5
lsolation (dB) Adjacent ≥30
Non-adjacent ≥40
lnsertion Loss Temperature Sensitivity (dB) ≤0.5
Wavelength Temperature Shifting(nm/℃) ≤0.002
Polarization Dependent Loss (dB) ≤0.2
Polarization Mode Dispersion (ps) ≤0.1
Directivity (dB) ≥50
Return Loss (dB) ≥45
Maximum Power Handling (mW) 300
Operating Temperature (℃) -10~+70
Storage Temperature ( ℃) -40~+85
Package Dimension (mm) L100 x W80 xH10 L120 x W80 x H18
19”1U Rackmount
Above specifications are for devices without connector.
Specifications may change without notice.





Ordering Information
CWDM □ □□ □□ □ □ □ □
  Channel Spacing Number of Channels 1st Channel Package Fiber Diameter Fiber Length Connector
  C=20nm 04=4 Channels 27=1270nm 1=ABS Box Module 0=250μm 1=1m O=None
    08=8 Channels …… 2=Rackmount 1=900μm 2=2m 1=FC/APC
    16=16 Channels 47=1470nm 3=LGXBoX 2=2.0mm S=Specify 2=FC/UPC
    18=18 Channels 49=1490nm 4=Insert Box 3=3.0mm   3=SCI/APC
    N=N Channels …… 5=Specify     4=SC/UPC
      61=1610nm       5=LC/APC
              6=LC/UPC
              7=ST
              s=Specify
