| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | EN50200 PH30 Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 300M, 500M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Plain Annealed Copper Wire | Insulation: | Fire Resistant Silicone Rubber |
|---|---|---|---|
| Shield1: | PET Foil | Drain Wire: | Solid Tinned Copper |
| Shield2: | Aluminum PET | Jacket: | FR-LSZH |
| Color: | Red Or White | Package: | 300M, 500M, Wooden Reel, Carton |
| High Light: | EN 50200 PH30 Fire Resistant Cable,CCA 1.5mm2 Fire Performance Cable,1.5mm2 Bare Copper Fire Protection Cable |
||
|

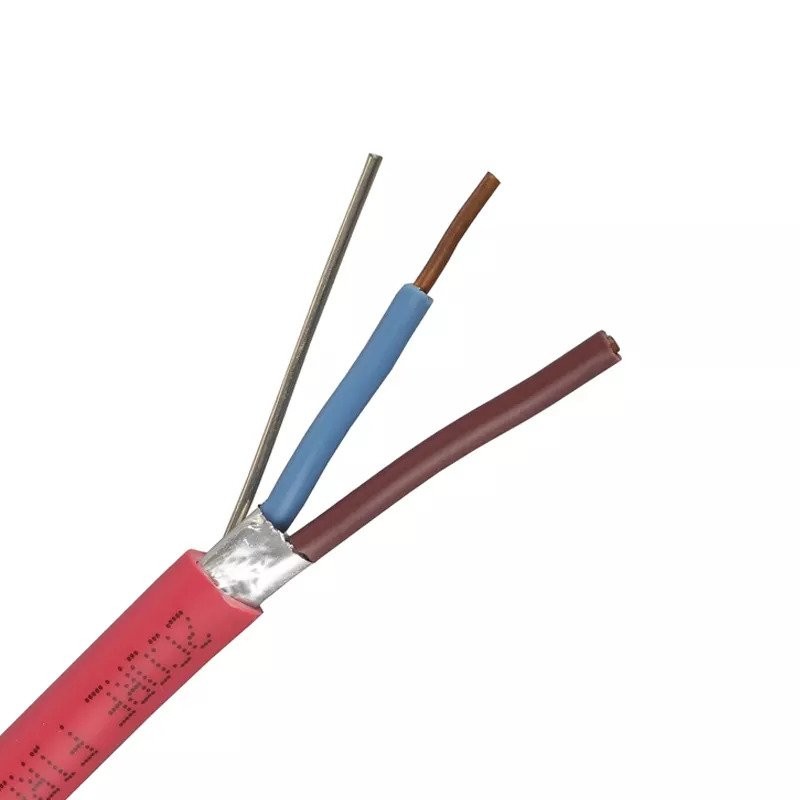

PH30 2×1.5mm² Fire Alarm Cables NO.7110402 |
|||||||
| Cable construction | |||||||
| Conductor: | 1.5mm(sqmm) Plain annealed copper wire, class 1,2 or 5 according to EN60228. |
||||||
| Insulation: | Fire resistant silicone rubber BS 6387 CWZ,EN 50200 PH30,IEC 60331 |
||||||
| Dia.over Dielectric:2x(0.0102"(2.6 mm)) | |||||||
| Insulation Color: | Blue / Brown | ||||||
| Shield 1: | PET Foil | ||||||
| Drain Wire: | 0.80 mm Solid tinned copper | ||||||
| Shield 2: | Aluminum PET (100% Coverage 20% overlapping) | ||||||
| Jacket: | FR-LSZH (Red or White) | ||||||
| Dia.over Jacket: 0.280''±0.006''(7.10±0.15mm) | |||||||
| HFFR EN 502902,BS7655 LTS1/LTS3 | |||||||
| Print Legend: | HELLOSIGNAL Fire Alarm Cable PH30 1.5mm² 2 Cores Class N BC BS 50200:2006 NO.7110402 ××××M/FT |
||||||
| Electrical Properties | |||||||
| Min.Bend Radius: | 8×Diameter | ||||||
| Min.Insulation resistance: | 200 MΩ/km | ||||||
| Max.Working Temperature: | .-30℃~+90℃ | ||||||
| Test voitage: | 2000 V | ||||||
| Max.Operating voitage: | 300 V / 600 V | ||||||
| Max.resistance of Cond: | Class1,2:12Ω/km | Class5:12.9Ω/km | |||||
| Current Carrying Capacity: | |||||||
| Cross Section | |||||||
 |
|||||||
| Order Informations | |||||||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet... | ||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||
| Brand | HELLOSIGNAL®OR OEM | ||||||
| Similar Type | |||||||
| Nom. Cond.Cross-Sect.(mm²) | Conductor Size (no./mm) | Drain Wire Size (no./mm) | Cable Diameter mm (±5 %) |
Weight (Kg/km) |
|||
| 7110401 | 2×1.0 | 30/0.2 | 1/0.80 | 6.1 | |||
| 7110402 | 2×1.5 | 30/0.25 | 1/0.80 | 7.5 | |||
| 7110403 | 2×2.5 | 49/0.25 | 1/0.80 | 8.5 | |||
| 7110404 | 2×4.0 | 56/0.3 | 1/0.80 | 9.6 | |||
| 7110405 | 2×6.0 | 85/0.3 | 1/0.80 | 11.5 | |||
| 7110406 | 3×1.0 | 30/0.2 | 1/0.80 | 6.5 | |||
| 7110407 | 3×1.5 | 30/0.25 | 1/0.80 | 7.4 | |||
| 7110408 | 3×2.5 | 49/0.25 | 1/0.80 | 8.65 | |||
| 7110409 | 3×4.0 | 56/0.3 | 1/0.80 | 10.1 | |||
| 7110410 | 4×1.0 | 30/0.2 | 1/0.80 | 7.1 | |||
| 7110411 | 4×1.5 | 30/0.25 | 1/0.80 | 8.2 | |||
| 7110412 | 4×2.5 | 49/0.25 | 1/0.80 | 9.75 | |||
| 7110413 | 4×4.0 | 56/0.3 | 1/0.80 | 11.4 | |||
| 7110414 | 7×1.0 | 30/0.2 | 1/0.80 | 10.0 | |||
| 7110415 | 7×1.5 | 30/0.25 | 1/0.80 | 11.3 | |||
| 7110416 | 12×1.0 | 30/0.2 | 1/0.80 | 12.5 | |||
| 7110417 | 12×1.5 | 30/0.25 | 1/0.80 | 14.5 | |||
| 7110418 | 19×1.0 | 30/0.2 | 1/0.80 | 15.0 | |||
| 7110419 | 19×1.5 | 30/0.25 | 1/0.80 | 17.0 | |||
