| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | Indoor fiber patch panel |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Material: | Cold Roll Steel | Connector Type: | SC, FC, ST, LC |
|---|---|---|---|
| Working Temperature: | -5℃~+40℃ | Splicing Capacity: | 24/48 Cores |
Optical Network Frame management system
FTTX project
Data processing centers/Cable television (CATV)
Other applications in Fiber optical systems
| ● Telecommunications subscriber loop | ||||||||
| ● Fiber to the home (FTTH) | ||||||||
| ● LAN/WAN | ||||||||
| ● CATV | ||||||||
| ● Other applications in Fiber optical systems |
| Company Code | 7244204 | ||||||||
| Material | cold roll steel | ||||||||
| Connector Type | SC, FC, ST, LC | ||||||||
| Working temperature | -5℃~+40℃ | ||||||||
| Type | 1U Fiber Patch Panel | ||||||||
| Splicing capacity | 24/48 cores | ||||||||
| Application | Telecommunication | ||||||||
| Place of Origin | ZheJiang, China | ||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||||
| MOQ | 50pcs | ||||||||

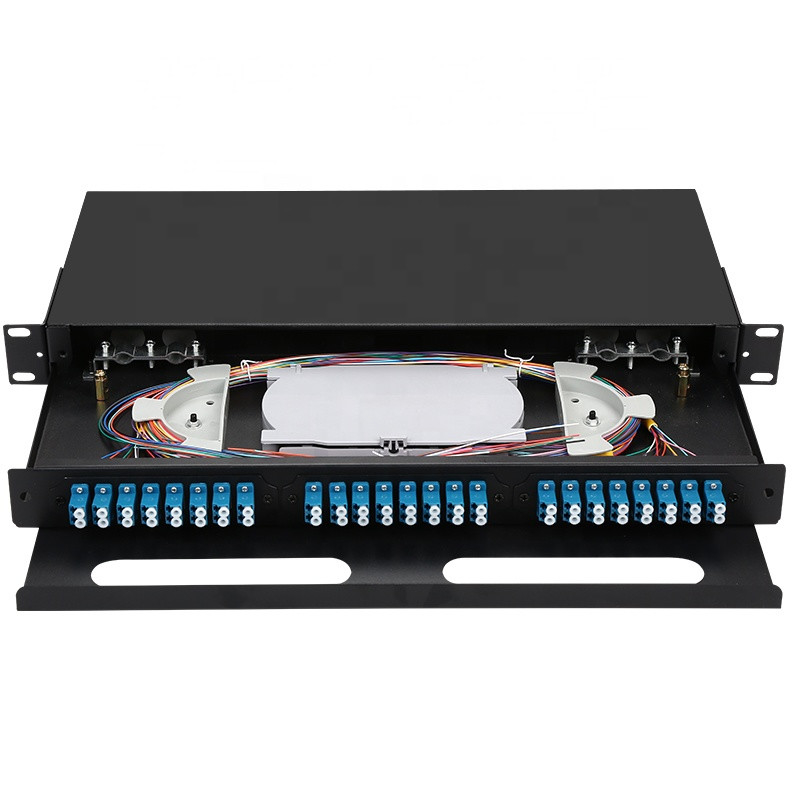

Fiber Optical Patch Panel is a box for protecting the optical cable and pigtail splice in the cable laying. It is mainly used for the straight-through connection and branch connection of the indoor optical cable and the fixing of the cable terminal, and functions as a pigtail storage and protection joint. Slidable Rack-mount Fiber Optic Patch Panel has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; standard 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath,
Gel-filled, Self-supporting, Aramid Yarn| KEVLAR
FTTH (fiber to the home) networks are installed in many areas covering indoor and outdoor sections and the transition in between.
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
FTTX project, Data processing centers/Cable television (CATV),Other applications in Fiber optical systems
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters
1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
Low insertion loss · Wide pass band · High channel isolation 1.02±0.05 mm HDPE · High stability and reliability Modified Polyethylene · Epoxy free on optical path PET Foil
SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER
1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss OPTIC ATTENUATOR
SC LC FC ST/APC UPC SX/DX 0.9/2.0/3.0mm Pre-polished Ferrule/FAST Field Assembly OPTIC PATCH CONNECTOR
Cabling Infrastructure
24/26AWG CAT5E/CAT6/CAT6A/CAT7/CAT8 UTP/FTP/SFTP CCA/BC PVC/LSZH RJ45 FU to 50U Copper Patch Cord
Bulk CAT 5e cables,
CAT 6 cables, CAT 6a cables,
CAT7 cables, Cat 8 cables, etc.
VE/603/IDC/601S/PE/TE series SPCC Cold Rolled Steel High Loading Capacity Server/Network Rack Cabinet
SE/EW/SA/SB/SQ/VA series SPCC Cold Rolled Steel High Excellent Compression Wall Mount Rack Cabinet
CAT5E/CAT6/CAT6A 0.5/1/2U 8/12/24/25/48/50/72 ports UTP/FTP blank patch panel matching 19"/10" cabinets
CAT5E/CAT6/CAT6A 0.5/1/2U 8/12/24/25/48/50/72 ports UTP/FTP blank patch panel matching 19″/10″ cabinets
Fit into a standard keystone wall plate or patch panel, allowing for easy and flexible installation in a variety of networking environments
