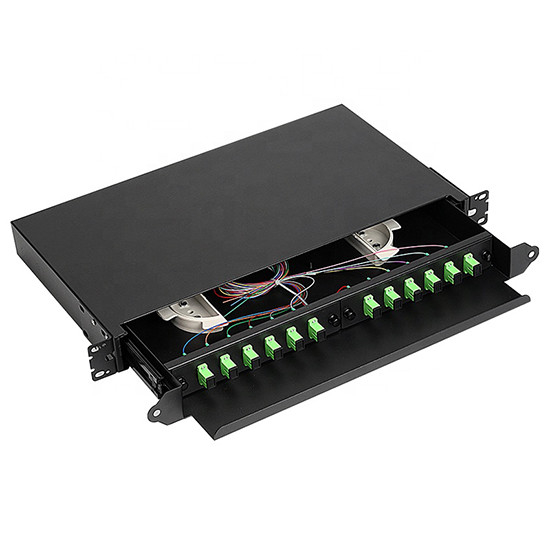

12 Core Fiber Optic Patch Panel with SC Simplex Adapters and Cold Roll Steel Construction

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	fiber patch panel

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Material:

Cold Roll Steel

Adapter Port:

Sc Simplex

Cable Port:

Splicing Capacity:

12 Cores

Highlight:

12 Core Fiber Optic Patch Panel

SC Simplex Fiber Splicing Patch Panel

Cold Roll Steel Optical Patch Panel

Product Description

Fiber Optic Patch Panel

Optical Network Frame management system designed for FTTX projects, data processing centers, cable television (CATV), and other fiber optic system applications.

Inquire Now

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN networks
Cable television (CATV)
Other fiber optic system applications

Specifications

Company Code	7244201
Material	Cold roll steel
Adapter port	SC simplex
Cable port	12
Cassette	2
Splicing capacity	12 cores
Application	Telecommunication
Place of Origin	ZheJiang, China
Brand	HELLOSIGNAL® OR OEM
Delivery time	Normally 25 days after received the deposit
MOQ	50pcs

Product Description

Fiber Optical Patch Panel is a protective enclosure for optical cable and pigtail splices in cable laying applications. It is primarily used for straight-through connections and branch connections of indoor optical cables, cable terminal fixation, and functions as a pigtail storage and protection joint. The slidable rack-mount design features aluminum sliding fittings with self-locking functions to prevent the drawer from falling when moved. Standard 19-inch rack mount compatible with ST, SC, LC, MTRJ, and FC adapters. The drawer serves as a holding board for splicing, allowing easy fiber withdrawal during testing and distribution.
