Home > Products> Optical Fiber System> ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance

ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance

ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance
ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ST UPC Simplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength(nm): 850-1300 Insertion Loss (dB): ≤ 0.3
Tensil Strength (N): ≥ 1000 Operating Temperature (℃）: -20 ~ +85
Highlight:

OM1 Multimode Fiber Optic Patch Cord

,

PVC 0.9mm Fiber Optic Cable

,

2m Length FOPT

Product Description

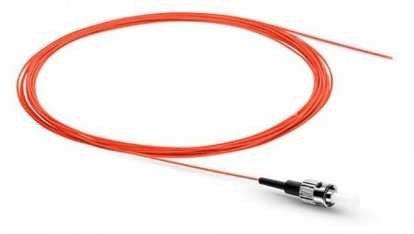

ST UPC Simplex OM1 Multimode PVC 0.9mm-2m(6ft) Fiber Optic Patch Cord
High-performance fiber optic patch cord with ST UPC connectors, designed for reliable data transmission in industrial and networking applications.
Inquire Now ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance 0
Fiber Optic Cable Specifications
Fiber Type Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)
900um/0.9mm Buffer Colour Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized: Green, Brown, White, Red, Black, Purple, Rose, Slate
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core to serve as peripheral strength member
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. Other lengths available on request
Connector Details
ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance 1
Product Specifications
Parameter ST UPC OM1 G.652.D/G.657.A1/G.657.A2
Operating Wavelength (nm) 850-1300
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 35
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensile Strength (N) ≥ 1000
Operating Temperature (℃) -20 ~ +85
Storage Temperature (℃) -40 ~ +85
Zion Code Description
41F1411-2(7242215) ST UPC Simplex OM1 Multimode PVC 0.9mm -2m(6ft) FOPT
ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance 2
OEM/ODM Services
ZION Communication has rich experience in producing OEM/ODM cases with our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
Related Products
ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance 3
LC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 11F1111-2(7242207)SM(OS2)G.652.D/G.657.A1/G.657.A2
ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance 4
LC UPC Simplex OM1 Multimode PVC 0.9mm -2m(6ft) FOPT 11F1411-2(7242208)OM1 G.652.D/G.657.A1/G.657.A2
ST UPC Simplex OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord with 2m Length for High Performance 5
LC APC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 12F1111-2(7242209)SM(OS2)G.652.D/G.657.A1/G.657.A2
