Home > Products> Optical Fiber System> SC APC OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord for High-Performance Connectivity

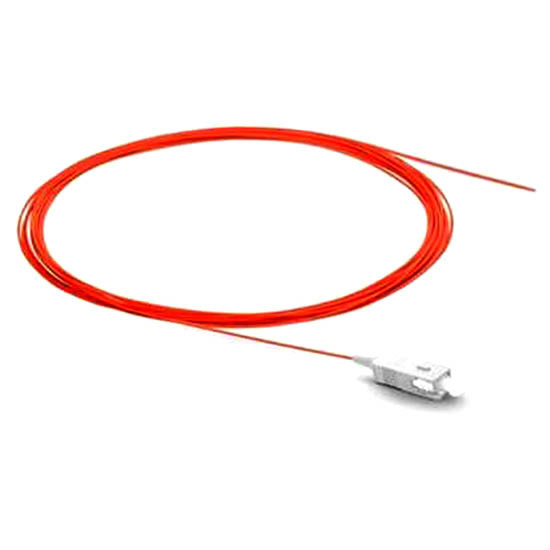

SC APC OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord for High-Performance Connectivity

SC APC OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord for High-Performance Connectivity
SC APC OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord for High-Performance Connectivity
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: SC APC Simplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength(nm): 850-1300 Insertion Loss (dB): ≤ 0.3
Tensil Strength (N): ≥ 1000 Operating Temperature (℃）: -20 ~ +85
Highlight:

SC APC Fiber Optic Patch Cord

,

OM1 Multimode Fiber Optic Cable

,

PVC 0.9mm FOPT

Product Description

SC APC Simplex OM1 Multimode PVC Fiber Optic Patch Cord
Fiber Optic Patch Cord Overview

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

SC APC OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord for High-Performance Connectivity 0
Fiber Optic Cable Specifications
Fiber Type Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)
900um/0.9mm Buffer Colour Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized: Green, Brown, White, Red, Black, Purple, Rose, Slate
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core to serve as peripheral strength member.
Cable Jacket Main material: PVC/LSZH/Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. Other lengths available on request
Connector Details
SC APC OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord for High-Performance Connectivity 1
Product Technical Specifications
Parameter SC APC OM1 G.652.D/G.657.A1/G.657.A2
Operating Wavelength (nm) 850-1300
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 35
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensile Strength (N) ≥ 1000
Operating Temperature (°C) -20 to +85
Storage Temperature (°C) -40 to +85
Zion Code Description
22F1411-2(7242214) SC APC Simplex OM1 Multimode PVC 0.9mm -2m(6ft) FOPT
SC APC OM1 Multimode PVC 0.9mm Fiber Optic Patch Cord for High-Performance Connectivity 2
OEM/ODM Customization Services

ZION Communication has rich experience in producing OEM/ODM cases with our professional R&D team.

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
