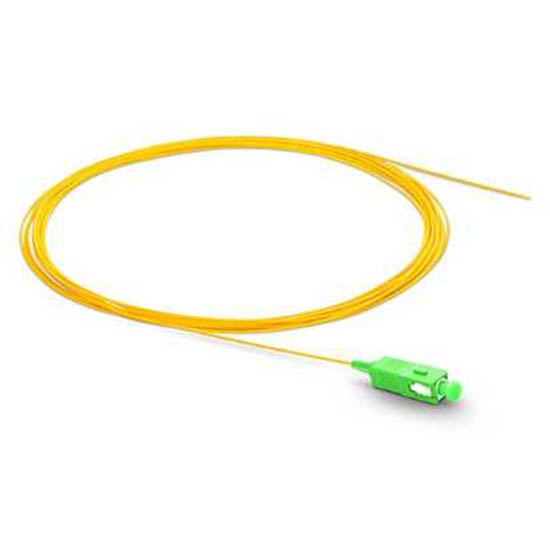

SC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket

SC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket
SC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: SC APC Simplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength(nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Tensil Strength (N): ≥ 1000 Operating Temperature (℃）: -20 ~ +85
Highlight:

SC APC Fiber Optic Patch Cord

,

G.652.D Single Mode Fiber Optic Cable

,

0.9mm PVC Jacket Fiber Jumper

Product Description

Fiber Optic Patch Cord
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
Inquire Now SC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket 0
Fiber Optic Cable Specifications
Fiber Types
  • Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
  • Multi-mode: OM1 (62.5/125), OM2 (50/125)
  • OM3, OM4 (50/125, Laser Optimization)
Buffer Color Coding
  • Yellow: SM OS2 (G.652.D / G.657.A1 / G.657.A2)
  • Orange: OM1, OM2
  • Aqua: OM3, OM4
  • Custom colors available: Green, Brown, White, Red, Black, Purple, Rose, Slate
Cable Construction
  • 900um/0.9mm Types: Single Typical (1 Fiber), Bunch Typical (12 Fibers), Customized (4-48 Fibers)
  • Aramid yarn reinforcement for strength
  • Jacket materials: PVC / LSZH / Plenum (OFNP)
  • Outer diameter: Simplex/Duplex 0.9/2.0/3.0mm
Standard Lengths
1m, 2m, 3m (custom lengths available on request)
Connector Details
SC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket 1
Product Specifications
Parameter SC APC
Fiber Type SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 60
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensile Strength (N) ≥ 1000
Operating Temperature (°C) -20 to +85
Storage Temperature (°C) -40 to +85
Zion Code Description
22F1111-2(7242213) SC APC Simplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPT
OEM/ODM Services
ZION Communication has rich experiences in producing OEM/ODM cases with our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Colors & Lengths Available
