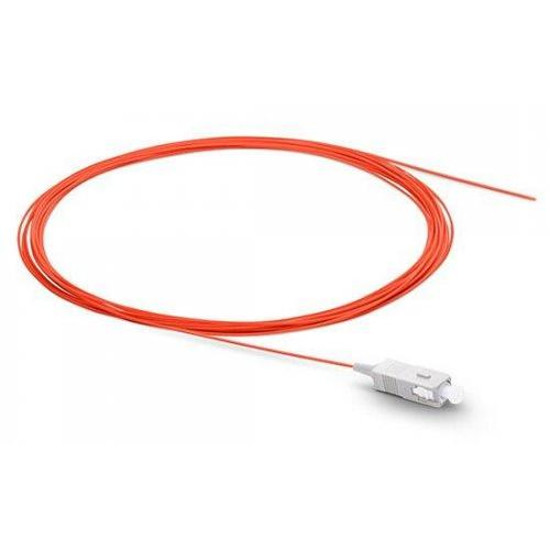

Name: SC UPC Simplex OM1 Multimode PVC 0.9mm-2m Fiber Optic Patch Cord for High-Speed Data Transmission
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: SC UPC Simplex
Availability: InStock

SC UPC Simplex OM1 Multimode PVC 0.9mm-2m Fiber Optic Patch Cord for High-Speed Data Transmission

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	SC UPC Simplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Operating Wavelength(nm):

850-1300

Insertion Loss (dB):

≤ 0.3

Tensil Strength (N):

≥ 1000

Operating Temperature (℃）:

-20 ~ +85

Highlight:

SC UPC Simplex Fiber Optic Patch Cord

OM1 Multimode Fiber Optic Cable

PVC 0.9mm-2m FOPT

Fiber Type

Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)

900um/0.9mm Buffer Colour

Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized: Green, Brown, White, Red, Black, Purple, Rose, Slate

900um/0.9mm Types

Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers

Aramid Yarn (2.0/3.0mm)

Aramid yarn is laid over the cable core to serve as peripheral strength member.

Cable Jacket

Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm

Jacket Color

Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4

Cable Length

1m, 2m, 3m. Other lengths available on request

Parameter

SC UPC OM1 G.652.D/G.657.A1/G.657.A2

Operating Wavelength (nm)

850-1300

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 35

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Tensile Strength (N)

≥ 1000

Operating Temperature (°C)

-20 ~ +85

Storage Temperature (°C)

-40 ~ +85

Zion Code

Description

21F1411-2(7242212)

SC UPC Simplex OM1 Multimode PVC 0.9mm -2m(6ft) FOPT
