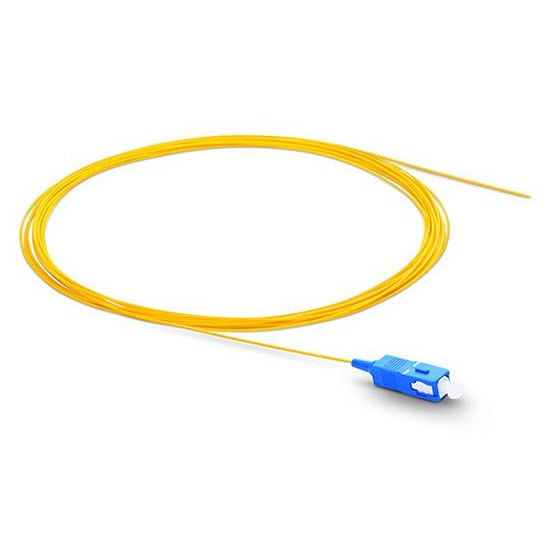

SC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 21F1111-2（7242211）SM(OS2)G.652.D/G.657.A1/G.657.A2

SC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 21F1111-2（7242211）SM(OS2)G.652.D/G.657.A1/G.657.A2
SC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 21F1111-2（7242211）SM(OS2)G.652.D/G.657.A1/G.657.A2
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: SC UPC Simplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength(nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Tensil Strength (N): ≥ 1000 Operating Temperature (℃）: -20 ~ +85

Product Description



Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now
SC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 21F1111-2（7242211）SM(OS2)G.652.D/G.657.A1/G.657.A2 0








Fiber Optic Cable

Fiber Type Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]
900um/0.9mm Buffer Colour Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core
to serve as peripheral strength member.
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. other lengths on request



Connector

SC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 21F1111-2（7242211）SM(OS2)G.652.D/G.657.A1/G.657.A2 1



Product Specification

Parameter SC UPC
SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm) 1310-1550
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 55
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensil Strength (N) ≥ 1000
Operating Temperature (℃) -20 ~ +85
Storage Temperature (℃) -40 ~ +85
Zion Code Description
21F1111-2(7242211) SC UPC Simplex
G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPT

SC UPC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) FOPT 21F1111-2（7242211）SM(OS2)G.652.D/G.657.A1/G.657.A2 2

OEM/ODM service for you

ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available
