Home > Products> Optical Fiber System> LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket

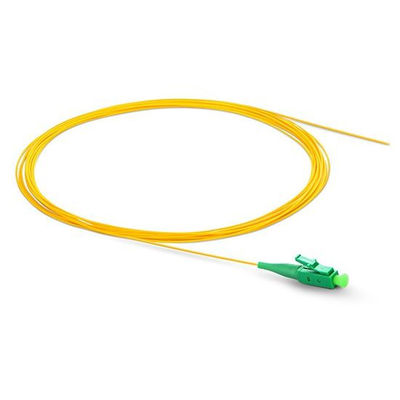

LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket

LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket
LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: LC APC Simplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength(nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Tensil Strength (N): ≥ 1000 Operating Temperature (℃）: -20 ~ +85
Highlight:

LC APC Fiber Optic Patch Cord

,

G.652.D Fiber Optic Cable

,

0.9mm PVC FOPT

Product Description

LC APC Simplex G.652.D Single Mode PVC 0.9mm-2m(6ft) Fiber Optic Patch Cord
Fiber Optic Patch Cord Overview

High-quality fiber optic patch cords and pigtails available in SC, LC, FC, ST connectors with APC/UPC polishing, 0.9/2.0/3.0mm diameters, and Single Mode/Multimode configurations with PVC/LSZH jackets.

Inquire Now LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket 0
Fiber Optic Cable Specifications
Fiber Type Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)
900um/0.9mm Buffer Colour Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized: Green, Brown, White, Red, Black, Purple, Rose, Slate
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core to serve as peripheral strength member
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m, other lengths on request
Connector Details
LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket 1
Product Specifications
Parameter LC APC
SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm) 1310-1550
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 60
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensil Strength (N) ≥ 1000
Operating Temperature (℃) -20 ~ +85
Storage Temperature (℃) -40 ~ +85
Zion Code Description
12F1111-2(7242209) LC APC Simplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPT
LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket 2
OEM/ODM Services

ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
