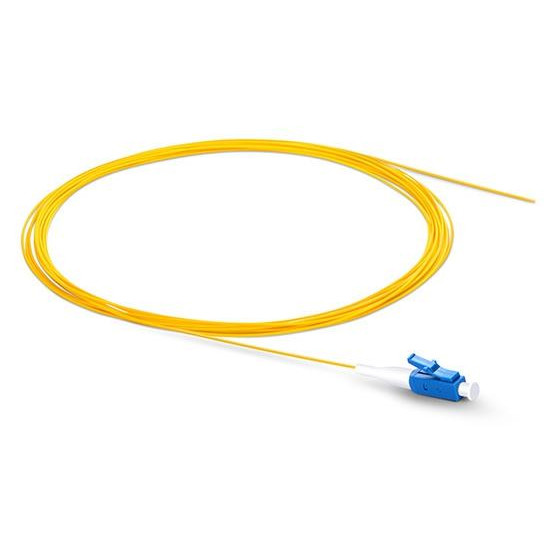

Name: LC UPC Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket for Reliable Connectivity
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: LC UPC Simplex
Availability: InStock

LC UPC Fiber Optic Patch Cord with G.652.D Single Mode and 0.9mm PVC Jacket for Reliable Connectivity

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC UPC Simplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Operating Wavelength(nm):

1310-1550

Insertion Loss (dB):

≤ 0.3

Tensil Strength (N):

≥ 1000

Operating Temperature (℃）:

-20 ~ +85

Highlight:

LC UPC Fiber Optic Patch Cord

G.652.D Single Mode Fiber Jumper

0.9mm PVC Jacket Optical Patch Cable

Parameter

LC UPC Specifications

Fiber Type

SM(OS2)G.652.D/G.657.A1/G.657.A2

Operating Wavelength (nm)

1310-1550

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 55

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Tensile Strength (N)

≥ 1000

Operating Temperature (°C)

-20 to +85

Storage Temperature (°C)

-40 to +85

Zion Code

Description

11F1111-2(7242207)

LC UPC Simplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPT

SC-FC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss Ceramic or Metal Sleeve for Wide Temperature Range (-40 to +85℃)

Contact Now

SC-FC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃)

Contact Now

FC SX Big D-Type Fiber Optic Adapter with 1310-1550 nm Wavelength, ≤ 0.2 dB Insertion Loss, and -40 to +85 ℃ Temperature Range

Contact Now

FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃)

Contact Now

Fiber Type	Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125) OM3, OM4 (50/125, Laser Optimization)
900um/0.9mm Buffer Colour	Yellow: SM OS2 (G.652.D/G.657.A1/G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4 Customized: Green, Brown, White, Red, Black, Purple, Rose, Slate
900um/0.9mm Types	Single Typical: 1 Fiber Bunch Typical: 12 Fibers Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm)	Aramid yarn is laid over the cable core to serve as peripheral strength member
Cable Jacket	Main material: PVC/LSZH/Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM OS2 (G.652.D/G.657.A1/G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m, other lengths on request
