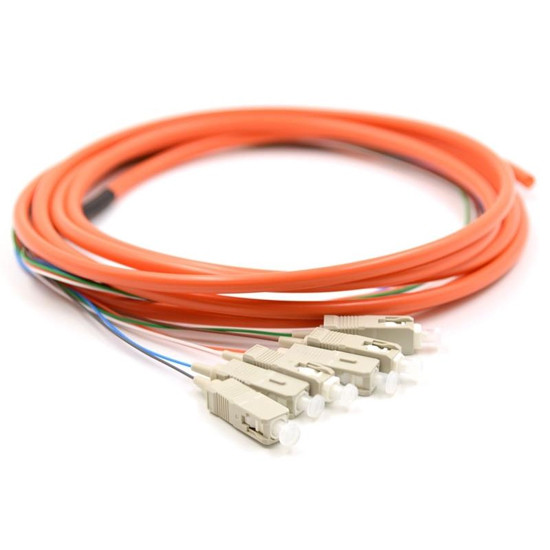

SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm Fiber Optic Patch Cord with Jacket FOPT

SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm Fiber Optic Patch Cord with Jacket FOPT
SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm Fiber Optic Patch Cord with Jacket FOPT
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: SC UPC
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength(nm): 850-1300 Insertion Loss (dB): ≤ 0.3
Tensil Strength (N): ≥ 1000 Operating Temperature (℃）: -20 ~ +85
Highlight:

12 Fibers Fiber Optic Patch Cord

,

OM1 Multimode Fiber Optic Cable

,

PVC 0.9mm FOPT

Product Description

Fiber Optic Patch Cord
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
Inquire Now SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm Fiber Optic Patch Cord with Jacket FOPT 0
Fiber Optic Cable Specifications
Fiber Types
Single-mode OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode OM1 (62.5/125), OM2 (50/125), OM3, OM4 (50/125, Laser Optimization)
Buffer Color Coding
Yellow Single Mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange OM1, OM2
Aqua OM3, OM4
Custom Colors Green, Brown, White, Red, Black, Purple, Rose, Slate
Cable Construction
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core to serve as peripheral strength member.
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Cable Length 1m, 2m, 3m. Other lengths available on request
Connector Details
SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm Fiber Optic Patch Cord with Jacket FOPT 1
Product Specifications
Parameter SC UPC OM1 G.652.D/G.657.A1/G.657.A2
Operating Wavelength (nm) 850-1300
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 35
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensile Strength (N) ≥ 1000
Operating Temperature (°C) -20 to +85
Storage Temperature (°C) -40 to +85
Zion Code Description
21F12411-2(7242206) SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT
SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm Fiber Optic Patch Cord with Jacket FOPT 2
OEM/ODM Services
ZION Communication has rich experiences in producing OEM/ODM cases with our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
