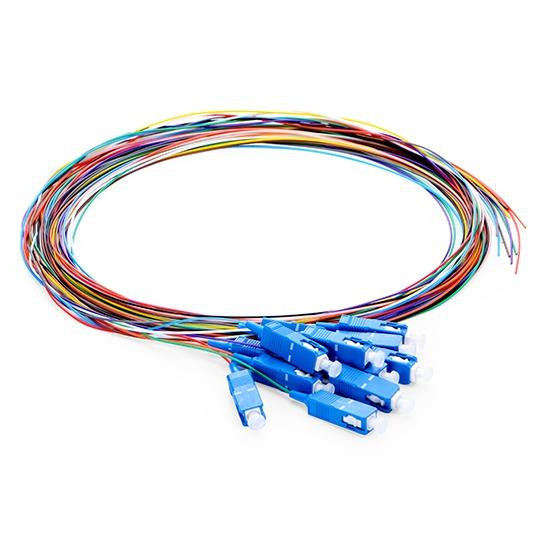

Name: SC UPC 12 Fibers G.652.D Single Mode Color-Coded Fiber Optic Patch Cord (FOPT) for High-Performance Networking
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: SC UPC
Availability: InStock

SC UPC 12 Fibers G.652.D Single Mode Color-Coded Fiber Optic Patch Cord (FOPT) for High-Performance Networking

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	SC UPC

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Operating Wavelength(nm):

1310-1550

Insertion Loss (dB):

≤ 0.3

Tensil Strength (N):

≥ 1000

Operating Temperature (℃）:

-20 ~ +85

Highlight:

12 Fibers Fiber Optic Patch Cord

G.652.D Single Mode FOPT

Color-Coded Fiber Optic Cable

SC-FC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss Ceramic or Metal Sleeve for Wide Temperature Range (-40 to +85℃)

Contact Now

SC-FC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃)

Contact Now

FC SX Big D-Type Fiber Optic Adapter with 1310-1550 nm Wavelength, ≤ 0.2 dB Insertion Loss, and -40 to +85 ℃ Temperature Range

Contact Now

FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃)

Contact Now

Fiber Type	Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2) Multi-mode: OM1 (62.5/125), OM2 (50/125) OM3, OM4 (50/125, Laser Optimization)
900um/0.9mm Buffer Color	Yellow: SM OS2 (G.652.D/G.657.A1/G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4 Customized: Green, Brown, White, Red, Black, Purple, Rose, Slate
900um/0.9mm Types	Single Typical: 1 Fiber Bunch Typical: 12 Fibers Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm)	Aramid yarn is laid over the cable core to serve as peripheral strength member
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM OS2 (G.652.D/G.657.A1/G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m, other lengths on request

Parameter	SC UPC
Operating Wavelength (nm)	1310-1550
Insertion Loss (dB)	≤ 0.3
Return Loss (dB)	≥ 55
Repeatability (dB)	≤ 0.1
Interchangeability (dB)	≤ 0.2
Tensile Strength (N)	≥ 1000
Operating Temperature (°C)	-20 to +85
Storage Temperature (°C)	-40 to +85

Zion Code	Description
21F12111U-2(7242205)	SC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT
