Home > Products> Optical Fiber System> SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord

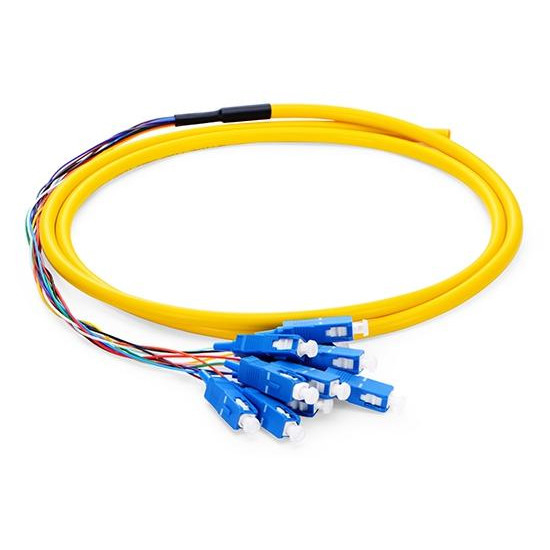

SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord

SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord
SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: SC UPC
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength(nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Tensil Strength (N): ≥ 1000 Operating Temperature (℃）: -20 ~ +85
Highlight:

12 Fibers Fiber Optic Patch Cord

,

G.652.D Single Mode Fiber Optic Cable

,

PVC 0.9mm with Jacket SC UPC Patch Cord

Product Description

SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket
Product Code: FOPT21F12111-2 (7242204)
Fiber Type: SM(OS2) G.652.D/G.657.A1/G.657.A2
Fiber Optic Patch Cord
High-quality fiber optic patch cords and pigtails available in various configurations including SC, LC, FC, ST/APC UPC connectors with 0.9/2.0/3.0mm diameters in Single Mode and Multimode variants with PVC/LSZH jackets.
Inquire Now SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord 0
Fiber Optic Cable Specifications
Fiber Types
Single-mode OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode OM1 (62.5/125), OM2 (50/125), OM3, OM4 (50/125, Laser Optimization)
Buffer Color Coding
Yellow SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange OM1, OM2
Aqua OM3, OM4
Custom Colors Green, Brown, White, Red, Black, Purple, Rose, Slate
Cable Construction
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core to serve as peripheral strength member
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Cable Length 1m, 2m, 3m, other lengths on request
Connector Details
SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord 1
Product Specifications
Parameter SC UPC
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 55
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensile Strength (N) ≥ 1000
Operating Temperature (°C) -20 to +85
Storage Temperature (°C) -40 to +85
Zion Code Description
21F12111-2(7242204) SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket FOPT
SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord 2
OEM/ODM Services
ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
