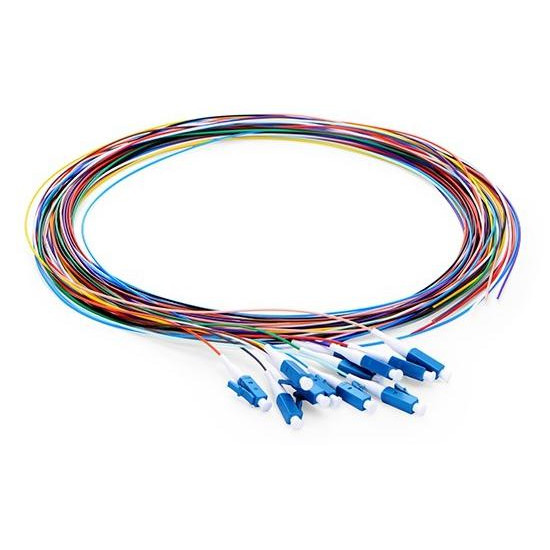

Name: LC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded Fiber Optic Patch Cord FOPT
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: LC UPC
Availability: InStock

Fiber Optic Patch Cord Overview

High-quality fiber optic patch cords and pigtails available in SC, LC, FC, ST/APC UPC configurations with 0.9/2.0/3.0mm diameters for Single Mode and Multimode applications using PVC/LSZH materials.

Inquire Now LC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded Fiber Optic Patch Cord FOPT 0

Fiber Optic Cable Specifications

Fiber Types

Type	Specifications
Single-mode	OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode	OM1 (62.5/125), OM2 (50/125), OM3, OM4 (50/125, Laser Optimization)

Buffer Colors & Configurations

Color	Application
Yellow	SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange	OM1, OM2
Aqua	OM3, OM4
Custom Colors	Green, Brown, White, Red, Black, Purple, Rose, Slate

Cable Construction

Component	Description
900um Types	Single Typical: 1 Fiber, Bunch Typical: 12 Fibers, Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm)	Laid over cable core as peripheral strength member
Cable Jacket	PVC / LSZH / Plenum (OFNP), OD: Simplex: 0.9/2.0/3.0mm, Duplex: 0.9/2.0/3.0mm
Standard Lengths	1m, 2m, 3m, other lengths available on request

Connector Details

Product Technical Specifications

Parameter	LC UPC Specification
Fiber Type	SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength (nm)	1310-1550
Insertion Loss (dB)	≤ 0.3
Return Loss (dB)	≥ 55
Repeatability (dB)	≤ 0.1
Interchangeability (dB)	≤ 0.2
Tensile Strength (N)	≥ 1000
Operating Temperature (℃)	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85

Zion Code	Description
11F12111U-2(7242202)	LC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT

OEM/ODM Customization Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team to meet your specific requirements.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Colors & Lengths Available

FTTH Drop Cable

FTTH (fiber to the home) networks covering indoor and outdoor sections and transitions.

Fiber Optic Splice Closure

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

Cabling Infrastructure Solutions

Copper Patch Cord

24/26AWG CAT5E/CAT6/CAT6A/CAT7/CAT8 UTP/FTP/SFTP CCA/BC PVC/LSZH RJ45 FU to 50U Copper Patch Cord

Bulk Ethernet Cables

Bulk CAT 5e, CAT 6, CAT 6a, CAT7, Cat 8 cables and more.

Server/Network Rack Cabinet

VE/603/IDC/601S/PE/TE series SPCC Cold Rolled Steel High Loading Capacity

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC UPC

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

LC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded Fiber Optic Patch Cord FOPT

12 Fibers Fiber Optic Patch Cord

G.652.D Single Mode LC UPC Patch Cord

Unjacketed Color-Coded FOPT
