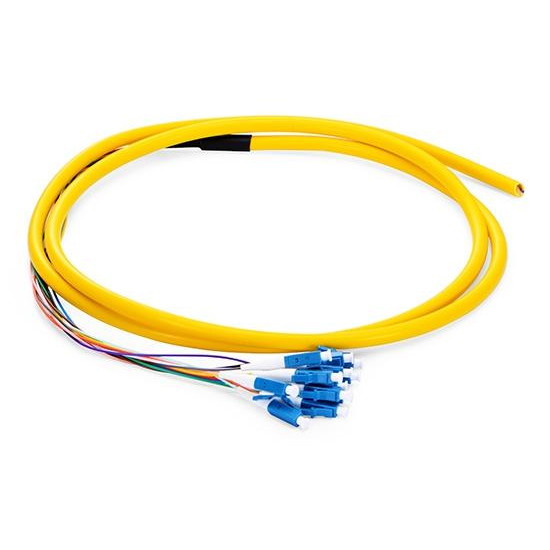

LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord

LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord
LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: LC UPC
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength(nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Tensil Strength (N): ≥ 1000 Operating Temperature (℃）: -20 ~ +85
Highlight:

12 Fibers Fiber Optic Patch Cord

,

G.652.D Single Mode Fiber Optic Cable

,

PVC 0.9mm with Jacket Fiber Optic Patch Cable

Product Description

LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket
Product Code: FOPT11F12111-2 (7242201) SM(OS2)G.652.D/G.657.A1/G.657.A2
Fiber Optic Patch Cord Overview
High-performance fiber optic patch cords available in SC, LC, FC, ST/APC UPC configurations with 0.9/2.0/3.0mm diameters in Single Mode and Multimode variants using PVC or LSZH materials.
Inquire Now LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord 0
Fiber Optic Cable Specifications
Fiber Types
Single-mode OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode OM1 (62.5/125), OM2 (50/125), OM3, OM4 (50/125, Laser Optimization)
Buffer Color Coding
Yellow SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange OM1, OM2
Aqua OM3, OM4
Custom Colors Green, Brown, White, Red, Black, Purple, Rose, Slate
Cable Construction
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core to serve as peripheral strength member
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Cable Length 1m, 2m, 3m, other lengths on request
Connector Details
LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord 1
Product Performance Specifications
Parameter LC UPC Specification
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 55
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensile Strength (N) ≥ 1000
Operating Temperature (°C) -20 to +85
Storage Temperature (°C) -40 to +85
Product Identification
Zion Code Description
11F12111-2(7242201) LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket FOPT
LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket Fiber Optic Patch Cord 2
OEM/ODM Customization Services
ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
