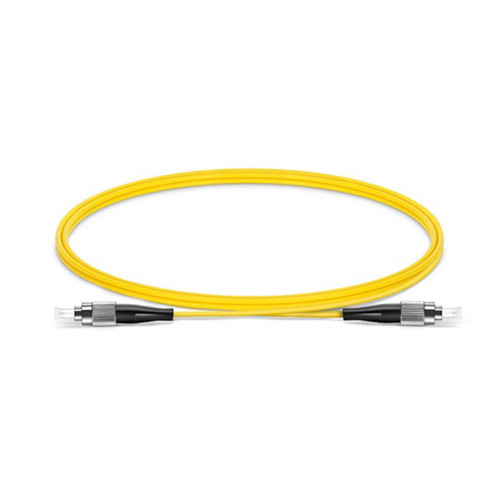

Name: FC UPC to FC UPC Simplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: FC UPC to FC UPC Simplex
Availability: InStock

FC UPC to FC UPC Simplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	FC UPC to FC UPC Simplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Fiber Count:

Simplex / Duplex

Main Material:

PVC / LSZH / Plenum (OFNP)

Cable Length:

1m, 2m, 3m. Other Lengths On Request

Fiber Height:

± 100nm

Highlight:

FC UPC to FC UPC Fiber Optic Patch Cord

G.652.D Single Mode FOPC

PVC 2.0mm Fiber Optic Cable

Fiber Type

Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)

Fiber Count

Simplex / Duplex

Cable Jacket

Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm
Duplex: 0.9/2.0/3.0mm

Jacket Color

Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4

Cable Length

1m, 2m, 3m. Other lengths available on request

Ferrule

Ceramic; (MTRJ: PS-Polyphenylene Sulphide)

Apex Offset

< 50um

Fiber Height

± 100nm

Radius of Curvature

7mm R < 25mm (Excluding MTRJ)

Repeatability

≤ 0.2dB 1,000 times mating cycles

Parameter

FC UPC

SM(OS2)G.652.D/G.657.A1/G.657.A2

Operating Wavelength(nm)

1310-1550

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 55

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Tensil Strength (N)

≥ 1000

Operating Temperature (℃)

-20 ~ +85

Storage Temperature (℃)

-40 ~ +85

Zion Code

Description

3131S112-2(7242130)

FC UPC to FC UPC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC
