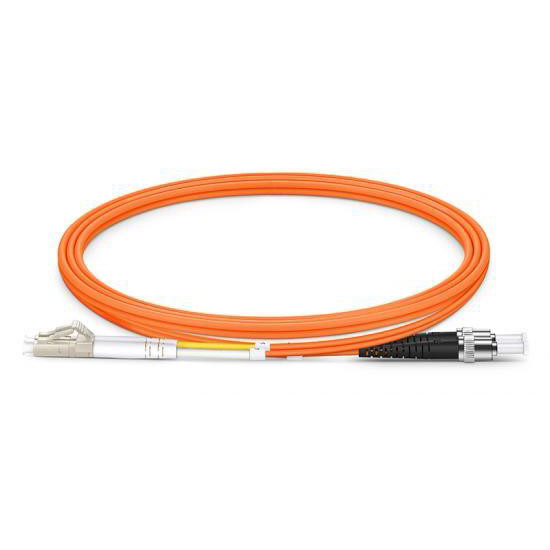

LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC

LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC
LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: LC APC to ST UPC Duplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Fiber Count: Simplex / Duplex Main Material: PVC / LSZH / Plenum (OFNP)
Cable Length: 1m, 2m, 3m. Other Lengths On Request Fiber Height: ± 100nm
Highlight:

Duplex Fiber Optic Patch Cord

,

OM1 Multimode FOPC

,

2.0mm PVC Fiber Jumper

Product Description

Fiber Optic Patch Cord
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
Inquire Now LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC 0
Fiber Optic Cable Specifications
Fiber Type
Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125), OM3, OM4 (50/125, Laser Optimization)
Fiber Count
Simplex / Duplex
Cable Jacket
Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color
Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length
1m, 2m, 3m. Other lengths available on request
Mechanical Specification
  • Ferrule: Ceramic (MTRJ: PS-Polyphenylene Sulphide)
  • Apex Offset: < 50um
  • Fiber Height: ± 100nm
  • Radius of Curvature: 7mm R < 25mm (Excluding MTRJ)
  • Repeatability: ≤ 0.2dB 1,000 times mating cycles
Connector Specifications
LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC 1 LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC 2
Parameter LC APC ST UPC
Operating Wavelength(nm) 1310-1550 1310-1550
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 60 ≥ 50
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensil Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (℃) -20 ~ +85 -20 ~ +85
Storage Temperature (℃) -40 ~ +85 -40 ~ +85
Zion Code Description
1141D412-2(7242127) LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC
LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC 3
OEM/ODM Services
ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
LC APC to ST UPC Duplex OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC 4
