LC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC APC to SC APC Duplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Fiber Count:

Simplex / Duplex

Main Material:

PVC / LSZH / Plenum (OFNP)

Cable Length:

1m, 2m, 3m. Other Lengths On Request

Fiber Height:

± 100nm

Highlight:

LC APC to SC APC Duplex Fiber Optic Patch Cord

G.652.D Single Mode FOPC

PVC 2.0mm Fiber Jumper

Product Description

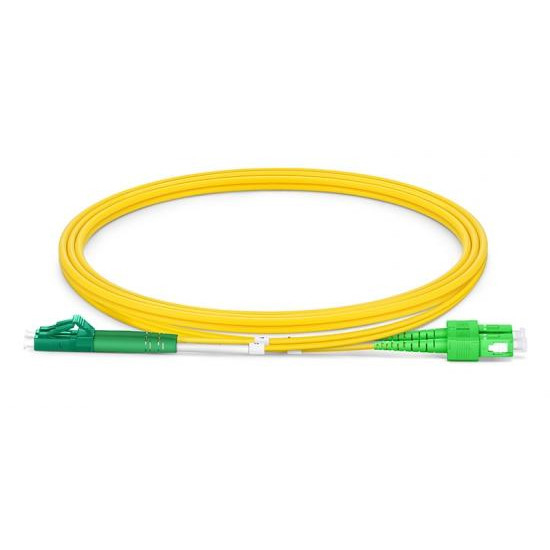

LC APC to SC APC Duplex Fiber Optic Patch Cord

G.652.D Single Mode PVC 2.0mm - 2m(6ft) FOPC 1222D112-2 (7242123) OS2 (G.652.D/G.657.A1/G.657.A2)

Fiber Optic Patch Cord Overview

High-quality fiber optic patch cords available in SC, LC, FC, ST connectors with APC/UPC polishing, 0.9/2.0/3.0mm diameters, and Single Mode/Multimode options with PVC/LSZH jackets.

Inquire Now LC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission 0

Fiber Optic Cable Specifications

Fiber Type	Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125) OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Mechanical Specifications

Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50um
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector Types

Product Performance Specifications

Parameter	LC APC	SC APC
Operating Wavelength(nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 60	≥ 60
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensil Strength (N)	≥ 1000	≥ 1000
Operating Temperature (℃)	-20 ~ +85	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85	-40 ~ +85

Zion Code	Description
1222D112-2(7242123)	LC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Different Lengths Available
