LC UPC to SC UPC Duplex OM1 Multimode Fiber Optic Patch Cord with 2.0mm PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC UPC to SC UPC Duplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Fiber Count:

Simplex / Duplex

Main Material:

PVC / LSZH / Plenum (OFNP)

Cable Length:

1m, 2m, 3m. Other Lengths On Request

Fiber Height:

± 100nm

Highlight:

LC UPC to SC UPC Duplex Fiber Optic Patch Cord

OM1 Multimode Fiber Optic Cable

2.0mm PVC FOPC

Product Description

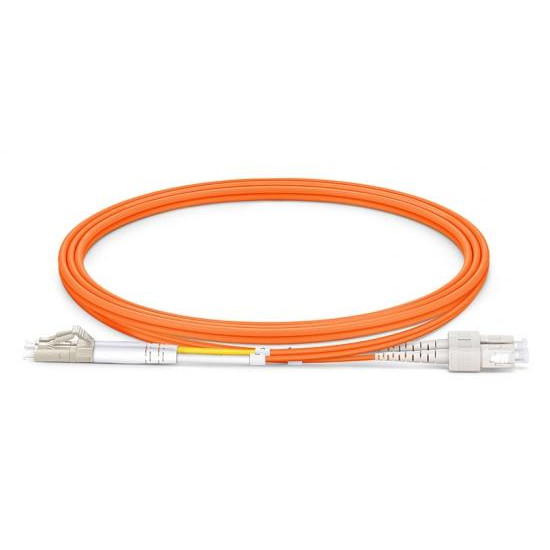

LC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm - 2m(6ft) Fiber Optic Patch Cord

High-quality fiber optic patch cord featuring LC UPC to SC UPC connectors, designed for reliable data transmission in industrial and networking applications.

Fiber Optic Cable Specifications

Fiber Type	Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125) OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m, other lengths on request

Mechanical Specifications

Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50um
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector Types

Product Performance Specifications

Parameter	LC UPC	SC UPC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 35	≥ 35
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 to +85	-20 to +85
Storage Temperature (°C)	-40 to +85	-40 to +85

Product Identification

Zion Code	Description
1121D412-2(7242120)	LC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC

OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Different Lengths Available
