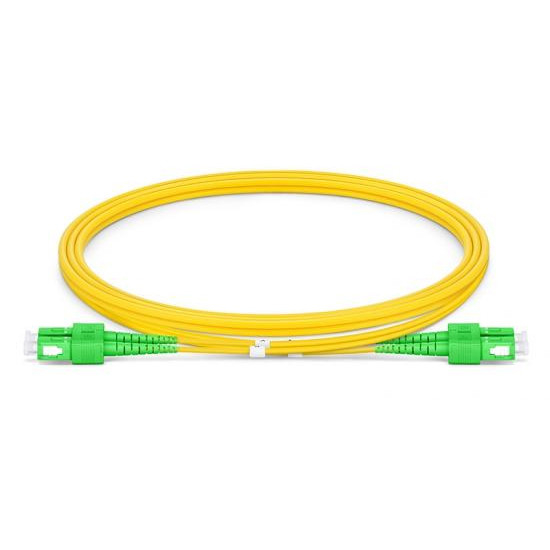

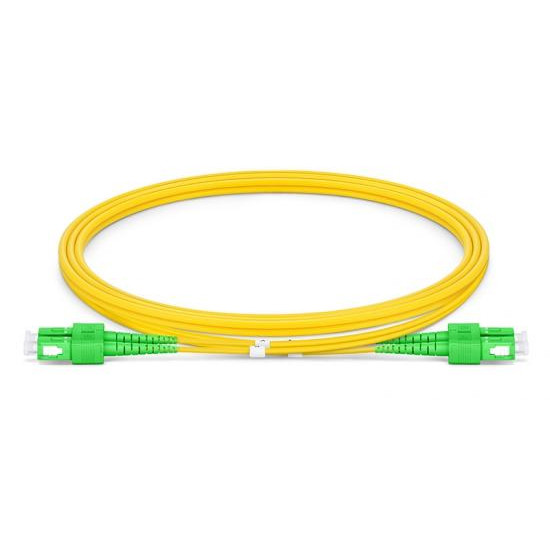

SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC

SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC
SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: SC APC to SC APC Duplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Fiber Count: Simplex / Duplex Main Material: PVC / LSZH / Plenum (OFNP)
Cable Length: 1m, 2m, 3m. Other Lengths On Request Fiber Height: ± 100nm
Highlight:

SC APC to SC APC Duplex Fiber Optic Patch Cord

,

G.652.D Single Mode FOPC

,

PVC 2.0mm Fiber Jumper

Product Description

SC APC to SC APC Duplex Fiber Optic Patch Cord
SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2222D112-2（7242117）SM(OS2)G.652.D/G.657.A1/G.657.A2
Fiber Optic Patch Cord Overview
High-quality fiber optic patch cords and pigtails available in various connector types including SC, LC, FC, ST with APC/UPC configurations, and cable diameters of 0.9/2.0/3.0mm for both single mode and multimode applications.
SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC 0
Fiber Optic Cable Specifications
Fiber Type Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)
Fiber Count Simplex / Duplex
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. Other lengths available on request
Mechanical Specifications
Ferrule Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset < 50um
Fiber Height ± 100nm
Radius of Curvature 7mm R < 25mm (Excluding MTRJ)
Repeatability ≤ 0.2dB 1,000 times mating cycles
Connector Details
SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC 1
Product Performance Parameters
Parameter SC UPC SC UPC
Operating Wavelength(nm) 1310-1550 1310-1550
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 ≥ 55
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensil Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (℃) -20 ~ +85 -20 ~ +85
Storage Temperature (℃) -40 ~ +85 -40 ~ +85
Product Identification
Zion Code Description
2222D112-2(7242117) SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC
SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC 2
OEM/ODM Services
ZION Communication has rich experiences in producing OEM/ODM cases because of our Professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord FOPC 3
