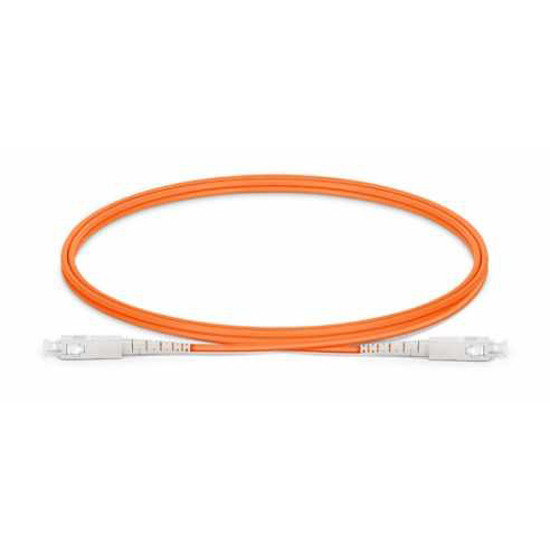

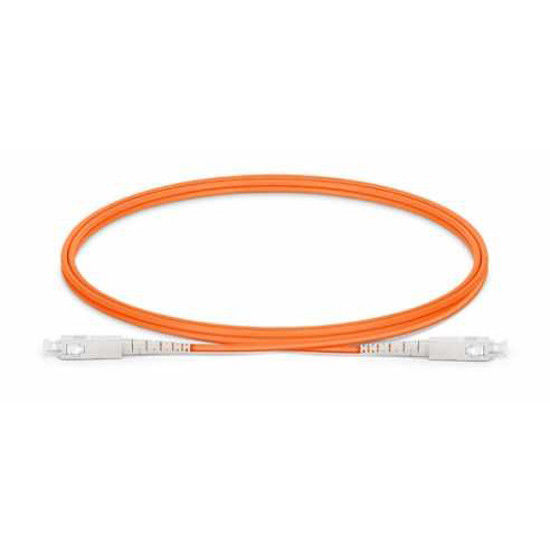

SC UPC to SC UPC OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC for Reliable Connectivity

SC UPC to SC UPC OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC for Reliable Connectivity
SC UPC to SC UPC OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC for Reliable Connectivity
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: SC UPC to SC UPC Simplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Fiber Count: Simplex / Duplex Main Material: PVC / LSZH / Plenum (OFNP)
Cable Length: 1m, 2m, 3m. Other Lengths On Request Fiber Height: ± 100nm
Highlight:

SC UPC to SC UPC Fiber Optic Patch Cord

,

OM1 Multimode FOPC

,

PVC 2.0mm Fiber Jumper

Product Description

SC UPC to SC UPC Simplex OM1 Multimode PVC 2.0mm - 2m(6ft) Fiber Optic Patch Cord
High-performance fiber optic patch cord designed for reliable data transmission in industrial and networking applications.
Inquire Now SC UPC to SC UPC OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC for Reliable Connectivity 0
Fiber Optic Cable Specifications
Fiber Type
Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)
Cable Configuration
Simplex / Duplex options available
Cable Jacket
Materials: PVC / LSZH / Plenum (OFNP)
Diameter: Simplex: 0.9/2.0/3.0mm
Duplex: 0.9/2.0/3.0mm
Jacket Color Coding
Yellow: Single-mode OS2
Orange: OM1, OM2
Aqua: OM3, OM4
Available Lengths
1m, 2m, 3m standard
Custom lengths available on request
Mechanical Specifications
Ferrule Material Ceramic (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset < 50μm
Fiber Height ± 100nm
Radius of Curvature 7mm R < 25mm (Excluding MTRJ)
Repeatability ≤ 0.2dB over 1,000 mating cycles
Connector Details
SC UPC to SC UPC OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC for Reliable Connectivity 1
Product Performance Parameters
Parameter SC UPC SC UPC
Fiber Type OM1 G.652.D/G.657.A1/G.657.A2
Operating Wavelength (nm) 850-1300 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 35 ≥ 35
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
Zion Code: 2121S412-2(7242116)
Description: SC UPC to SC UPC Simplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC
SC UPC to SC UPC OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC for Reliable Connectivity 2
OEM/ODM Customization Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team.
  • Customized Logo Application
  • Printing on Cable Jacket
  • Label/PE Bag/Carton Design
  • Various Colors & Custom Lengths Available
SC UPC to SC UPC OM1 Multimode PVC 2.0mm Fiber Optic Patch Cord FOPC for Reliable Connectivity 3
