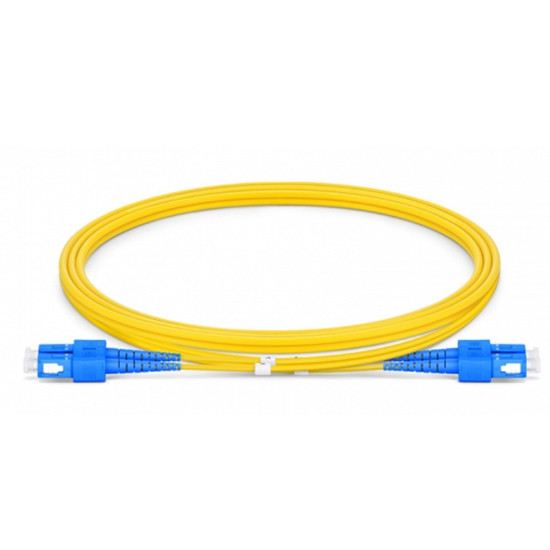

SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission

SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: SC UPC to SC UPC Duplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Fiber Count: Simplex / Duplex Main Material: PVC / LSZH / Plenum (OFNP)
Cable Length: 1m, 2m, 3m. Other Lengths On Request Fiber Height: ± 100nm
Highlight:

OS2 Fiber Optic Cable 2.0mm

,

SC UPC To SC UPC G652D

,

OS2 Fiber Optic Cable 2m

Product Description

SC UPC to SC UPC Duplex G652D Single Mode PVC 2.0mm - 2m Fiber Optic Patch Cord
High-performance fiber optic patch cord designed for reliable data transmission in telecommunications and networking applications.
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission 0
Product Specifications
Fiber Type Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Fiber Count Duplex
Cable Jacket Main material: PVC, OD: 2.0mm
Jacket Color Yellow (Single-mode)
Cable Length 2m (6ft)
Mechanical Specifications
Ferrule Ceramic
Apex Offset < 50μm
Fiber Height ± 100nm
Radius of Curvature 7mm R < 25mm
Repeatability ≤ 0.2dB (1,000 mating cycles)
Connector Performance
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission 1
Parameter SC UPC SC UPC
Operating Wavelength (nm) 1310-1550 1310-1550
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 ≥ 55
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
Zion Code: 2121D112-2(7242113)
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission 2
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Colors & Lengths Available
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission 3
Related Products
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission 4
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm - 2m FOPC
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission 5
SC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm - 2m FOPC
SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord for High-Speed Data Transmission 6
SC UPC to SC UPC Simplex G.652.D Single Mode PVC 2.0mm - 2m FOPC
