LC APC to LC APC Simplex Fiber Optic Patch Cord with G.652.D Single Mode and 2.0mm PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC APC to LC APC Simplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Fiber Count:

Simplex / Duplex

Main Material:

PVC / LSZH / Plenum (OFNP)

Cable Length:

1m, 2m, 3m. Other Lengths On Request

Fiber Height:

± 100nm

Highlight:

LC APC To LC APC G652D

PVC OS2 Fiber Optic Cable

Simplex Single Mode G652D

Product Description

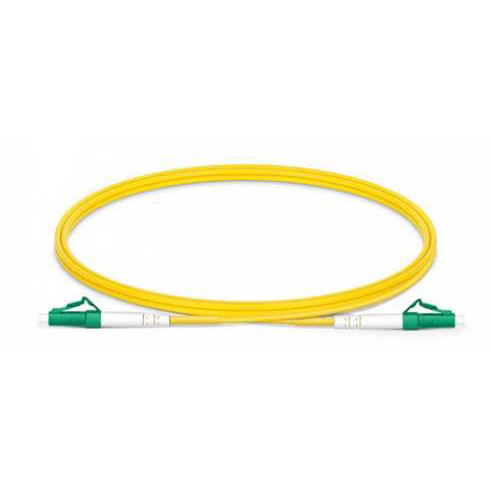

LC APC to LC APC Simplex OS2 G652D Single Mode PVC 2.0mm - 2m Fiber Optic Patch Cord

Fiber Optic Patch Cord Overview

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Product Specifications

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125) OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Mechanical Specifications

Ferrule: Ceramic (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset: < 50um
Fiber Height: ± 100nm
Radius of Curvature: 7mm R < 25mm (Excluding MTRJ)
Repeatability: ≤ 0.2dB 1,000 times mating cycles

Connector Details

Performance Parameters

Parameter	LC APC	LC APC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 60	≥ 60
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 to +85	-20 to +85
Storage Temperature (°C)	-40 to +85	-40 to +85

Product Identification

Zion Code	Description
1212S112-2	LC APC to LC APC Simplex G.652.D Single Mode PVC 2.0mm - 2m(6ft) FOPC

OEM/ODM Services

ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Different Lengths Available
