Home > Products> Optical Fiber System> G652D OS2 Single Mode Fiber Optic Cable 2.0mm LC UPC to LC APC Simplex Patch Cord

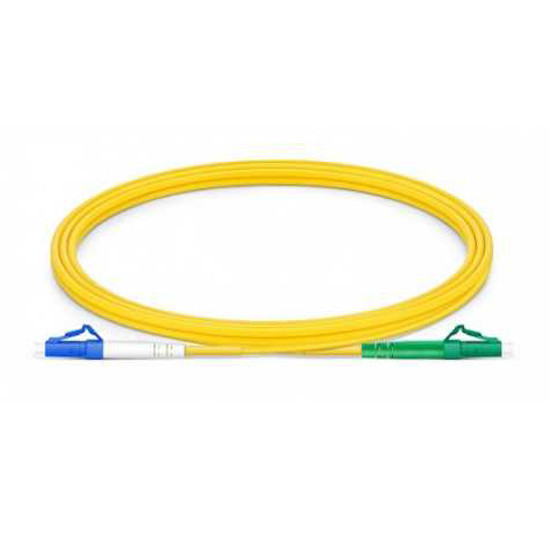

G652D OS2 Single Mode Fiber Optic Cable 2.0mm LC UPC to LC APC Simplex Patch Cord

G652D OS2 Single Mode Fiber Optic Cable 2.0mm LC UPC to LC APC Simplex Patch Cord
G652D OS2 Single Mode Fiber Optic Cable 2.0mm LC UPC to LC APC Simplex Patch Cord
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: LC UPC to LC APC Simplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Fiber Count: Simplex / Duplex Main Material: PVC / LSZH / Plenum (OFNP)
Cable Length: 1m, 2m, 3m. Other Lengths On Request Fiber Height: ± 100nm
Highlight:

2m OS2 Fiber Optic Cable

,

2.0mm OS2 Fiber Optic Cable

,

OS2 Fiber Optic Cable Single Mode

Product Description

G652D OS2 Fiber Optic Cable Single Mode 2.0mm - 2m LC UPC To LC APC Simplex
Fiber Optic Patch Cord
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
Inquire Now G652D OS2 Single Mode Fiber Optic Cable 2.0mm LC UPC to LC APC Simplex Patch Cord 0
LC UPC To LC APC Simplex G.652.D Single Mode PVC 2.0mm-2m(6ft) FOPC
Zion Code: 1112S112-2(7242110) OS2 (G.652.D/G.657.A1/G.657.A2)
Fiber Optic Cable Specifications
Fiber Type Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)
Fiber Count Simplex / Duplex
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. Other lengths on request
Mechanical Specifications
Ferrule Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset < 50um
Fiber Height ± 100nm
Radius of Curvature 7mm R < 25mm (Excluding MTRJ)
Repeatability ≤ 0.2dB 1,000 times mating cycles
Connector
G652D OS2 Single Mode Fiber Optic Cable 2.0mm LC UPC to LC APC Simplex Patch Cord 1
Product Specification
Parameter LC UPC LC APC
Operating Wavelength(nm) 1310-1550 1310-1550
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 ≥ 60
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensil Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (℃) -20 ~ +85 -20 ~ +85
Storage Temperature (℃) -40 ~ +85 -40 ~ +85
OEM/ODM Service
ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
G652D OS2 Single Mode Fiber Optic Cable 2.0mm LC UPC to LC APC Simplex Patch Cord 2
