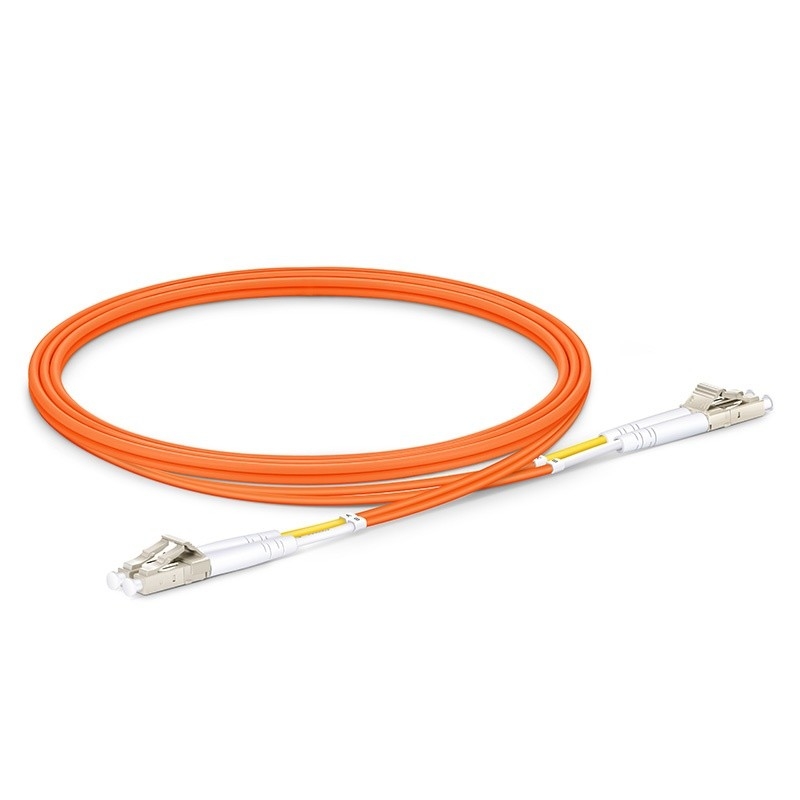

LC UPC to LC UPC Simplex OM1 Multimode PVC Fiber Optic Patch Cord for High-Speed Data Transmission

LC UPC to LC UPC Simplex OM1 Multimode PVC Fiber Optic Patch Cord for High-Speed Data Transmission
LC UPC to LC UPC Simplex OM1 Multimode PVC Fiber Optic Patch Cord for High-Speed Data Transmission
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: LC UPC to LC UPC Simplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Fiber Count: Simplex / Duplex Main Material: PVC / LSZH / Plenum (OFNP)
Cable Length: 1m, 2m, 3m. Other Lengths On Request Fiber Height: ± 100nm
Highlight:

OM1 OS2 Fiber Optic Cable

,

Simplex OM1 Fiber Optic Cable

,

Multimode OS2 Fiber Optic Cable

Product Description

Multimode LC UPC To LC UPC Simplex OM1 OS2 Fiber Optic Cable PVC
Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now LC UPC to LC UPC Simplex OM1 Multimode PVC Fiber Optic Patch Cord for High-Speed Data Transmission 0
LC UPC To LC UPC Simplex OM1 Multimode PVC 2.0mm-2m(6ft) FOPC
Fiber Optic Cable Specifications
Fiber Type Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)
Fiber Count Simplex / Duplex
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. Other lengths available on request
Mechanical Specifications
  • Ferrule: Ceramic (MTRJ: PS-Polyphenylene Sulphide)
  • Apex Offset: < 50um
  • Fiber Height: ± 100nm
  • Radius of Curvature: 7mm R < 25mm (Excluding MTRJ)
  • Repeatability: ≤ 0.2dB 1,000 times mating cycles
Connector
LC UPC to LC UPC Simplex OM1 Multimode PVC Fiber Optic Patch Cord for High-Speed Data Transmission 1
Product Performance Specifications
Parameter LC UPC LC UPC
Operating Wavelength(nm) 850-1300 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 35 ≥ 35
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensil Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (℃) -20 ~ +85 -20 ~ +85
Storage Temperature (℃) -40 ~ +85 -40 ~ +85
Zion Code Description
1111S412-2(7242109) LC UPC to LC UPC Simplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC
LC UPC to LC UPC Simplex OM1 Multimode PVC Fiber Optic Patch Cord for High-Speed Data Transmission 2
OEM/ODM Services

ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
