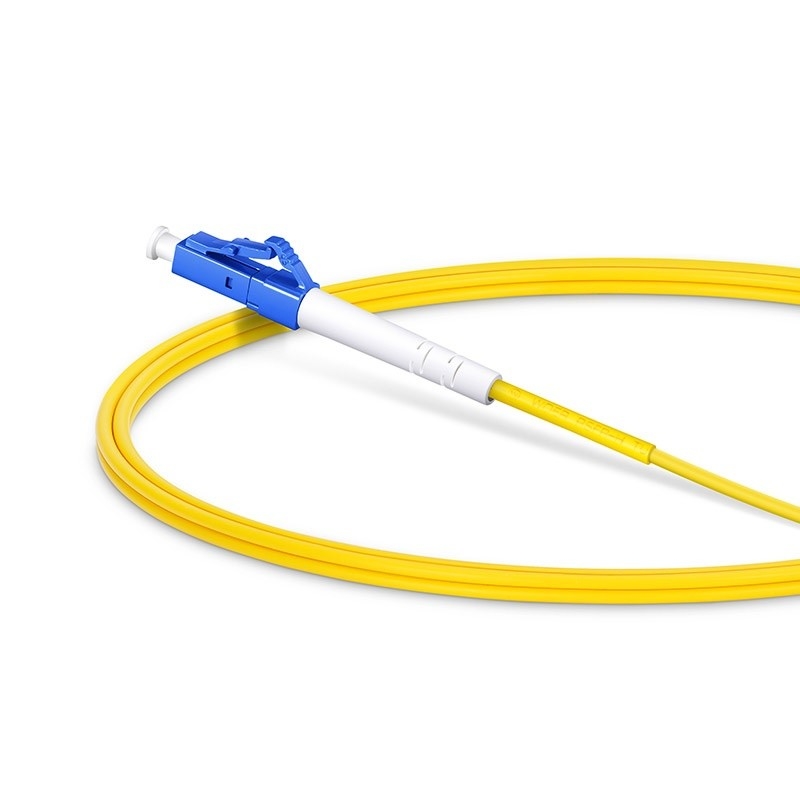

LC UPC to LC UPC Simplex G.652.D Single Mode Fiber Optic Patch Cord with 2.0mm PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC UPC to LC UPC Duplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Fiber Count:

Simplex / Duplex

Main Material:

PVC / LSZH / Plenum (OFNP)

Cable Length:

1m, 2m, 3m. Other Lengths On Request

Fiber Height:

± 100nm

Highlight:

2.0mm OS2 Fiber Optic Cable

Simplex OS2 Fiber Optic Cable

Simplex G652D Fiber Optic Cable

Parameter

LC UPC

Operating Wavelength (nm)

1310-1550

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 55

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Tensile Strength (N)

≥ 1000

Operating Temperature (°C)

-20 to +85

Storage Temperature (°C)

-40 to +85

Zion Code

Description

1111S112-2(7242108)

LC UPC to LC UPC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

SC-FC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss Ceramic or Metal Sleeve for Wide Temperature Range (-40 to +85℃)

Contact Now

SC-FC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃)

Contact Now

FC SX Big D-Type Fiber Optic Adapter with 1310-1550 nm Wavelength, ≤ 0.2 dB Insertion Loss, and -40 to +85 ℃ Temperature Range

Contact Now

FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler

Contact Now

SC-ST SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss Ceramic or Metal Sleeve and Wide Operating Temperature

Contact Now

FC SX Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature

Contact Now

SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range

Contact Now

FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃)

Contact Now

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)	Multi-mode: OM1(62.5/125), OM2(50/125), OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50um
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles
