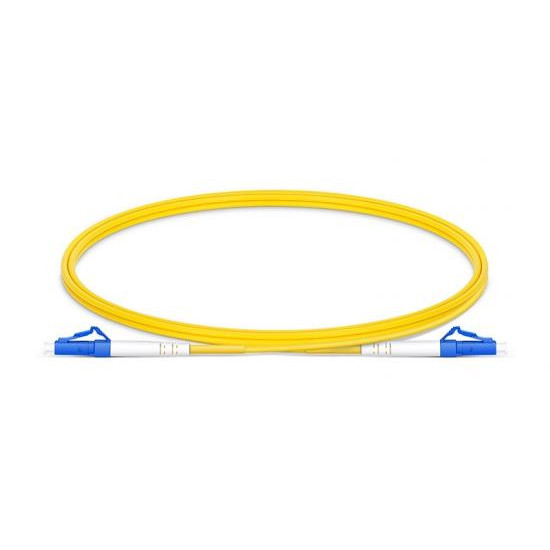

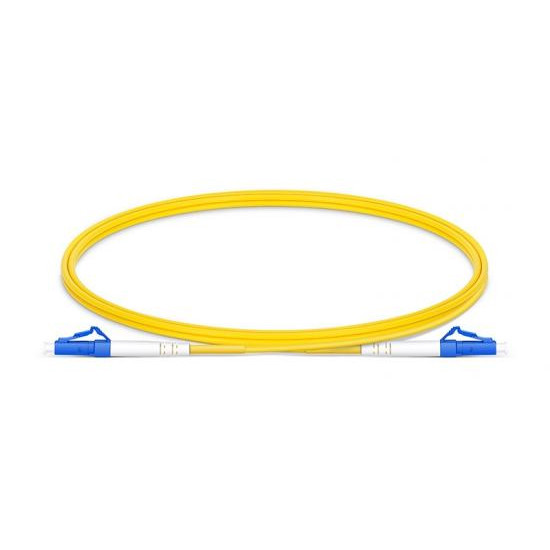

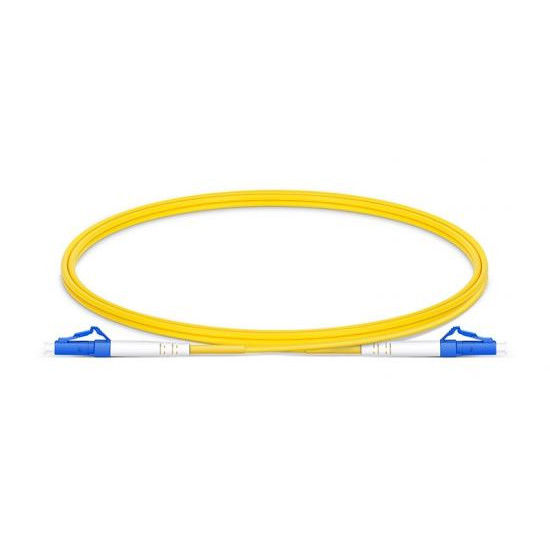

LC UPC to LC UPC Simplex G.652.D Single Mode PVC Fiber Optic Patch Cord for High-Speed Data Transmission

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC UPC to LC UPC Duplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Fiber Count:

Simplex / Duplex

Main Material:

PVC / LSZH / Plenum (OFNP)

Cable Length:

1m, 2m, 3m. Other Lengths On Request

Fiber Height:

± 100nm

Highlight:

Single Mode OS2 Fiber Optic Cable

Single Mode G652D Fiber Optic Cable

Simplex G652D Fiber Optic Cable

Fiber Type

Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimization)

Fiber Count

Simplex / Duplex

Cable Jacket

Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 2.0/3.0mm

Jacket Color

Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4

Cable Length

1m, 2m, 3m. Other lengths available on request

Ferrule

Ceramic; (MTRJ: PS-Polyphenylene Sulphide)

Apex Offset

< 50μm

Fiber Height

± 100nm

Radius of Curvature

7mm R < 25mm (Excluding MTRJ)

Repeatability

≤ 0.2dB 1,000 times mating cycles

Parameter

LC UPC

Operating Wavelength (nm)

1310-1550

Insertion Loss (dB)

≤ 0.3

Return Loss (dB)

≥ 55

Repeatability (dB)

≤ 0.1

Interchangeability (dB)

≤ 0.2

Tensile Strength (N)

≥ 1000

Operating Temperature (°C)

-20 to +85

Storage Temperature (°C)

-40 to +85

Zion Code

Description

1111S111-2(7242107)

LC UPC to LC UPC Simplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPC
