OM3 Multimode Fiber Optic Patch Cord with LC/UPC Connectors and 2.0mm PVC Jacket for High-Speed Data Transmission

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC UPC to LC UPC Duplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Fiber Count:

Simplex / Duplex

Main Material:

PVC / LSZH / Plenum (OFNP)

Cable Length:

1m, 2m, 3m. Other Lengths On Request

Fiber Height:

± 100nm

Highlight:

Dulplex OM3 Fiber Optic Cable

Multimode OM3 Fiber Optic Cable

Duplex Om3 Multimode Fiber Cable

Product Description

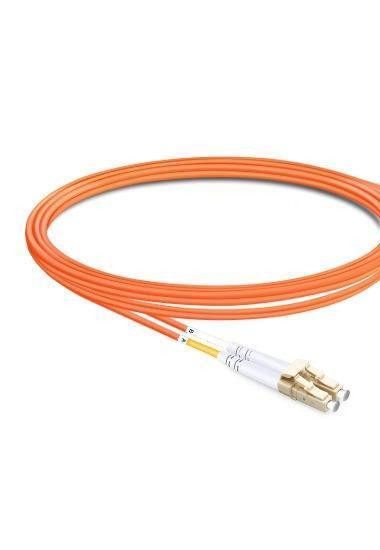

Multimode OM3 Fiber Optic Cable LC/UPC To LC/UPC Duplex 2.0mm - 1m 3ft FOPC

Fiber Optic Patch Cord

High-quality fiber optic patch cords and pigtails available in SC, LC, FC, ST/APC UPC configurations with 0.9/2.0/3.0mm diameters for both Single Mode and Multimode applications. Available in PVC and LSZH jacket materials.

Inquire Now OM3 Multimode Fiber Optic Patch Cord with LC/UPC Connectors and 2.0mm PVC Jacket for High-Speed Data Transmission 0

Product Specifications

Fiber Optic Cable Details

Fiber Type	Single-mode: OS2 (G.652.D/G.657.A1/G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125) OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D/G.657.A1/G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Mechanical Specifications

Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector Details

Performance Parameters

Parameter	LC UPC	LC UPC
OM3 G.652.D/G.657.A1/G.657.A2
Operating Wavelength (nm)	850-1300	850-1300
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 35	≥ 35
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 ~ +85	-20 ~ +85
Storage Temperature (°C)	-40 ~ +85	-40 ~ +85

Zion Code	Description
1111D612-1(7242105)	LC/UPC to LC/UPC Duplex OM3 Multimode PVC 2.0mm-1m(3ft) FOPC

OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Different Lengths Available
