Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2

Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2
Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: LC UPC to LC UPC Duplex
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Fiber Count: Simplex / Duplex Main Material: PVC / LSZH / Plenum (OFNP)
Cable Length: 1m, 2m, 3m. Other Lengths On Request Fiber Height: ± 100nm
Highlight:

G.657.A2 Fiber Optic Cable

,

G.657.A1 Fiber Optic Cable

,

G.652.D Fiber Optic Cable

Product Description



Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now
Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 0

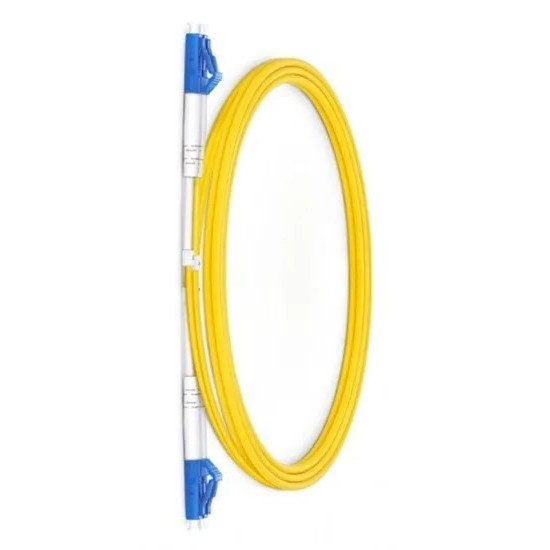

LC UPC To LC UPC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 1111D112-2(7242102) SM(OS2)G.652.D/G.657.A1/G.657.A2

Fiber Optic Cable

Fiber Type Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]
Fiber Count Simplex / Duplex
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. other lengths on request
Mechanical
Specification		 Ferrule Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset ＜ 50um
Fiber Height ± 100nm
Radius of Curvature 7mm R ＜ 25mm (Excluding MTRJ)
Repeatability ≤ 0.2dB 1,000 times mating cycles



Connector

Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 1





Product Specification

Parameter LC UPC LC UPC
SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm) 1310-1550
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 ≥ 55
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensil Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (℃) -20 ~ +85 -20 ~ +85
Storage Temperature (℃) -40 ~ +85 -40 ~ +85
Zion Code Description
1111D112-2(7242102) LC UPC to LC UPC Duplex
G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 2



OEM/ODM service for you

ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available

Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 3









Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 4 LC UPC to LC UPC Duplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPC 1111D111-2 (7242101) SM(OS2)G.652.D/G.657.A1/G.657.A2
Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 4 LC UPC to LC UPC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 1111D112-2(7242102) SM(OS2)G.652.D/G.657.A1/G.657.A2
Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 6 LC UPC to LC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 1111D412-2(7242103) OM1 G.652.D/G.657.A1/G.657.A2
Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 6 LC UPC to LC UPC Duplex OM2 Multimode PVC 2.0mm-2m(6ft) FOPC 1111D512-2(7242104)OM2 G.652.D/G.657.A1/G.657.A2
Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 8 LC/UPC to LC/UPC Dulplex OM3 Multimode PVC 2.0mm-1m(3ft) FOPC 1111D612-1(7242105)OM3 G.652.D/G.657.A1/G.657.A2
Single Mode PVC FOPC 1111D112-2 7242102 SM OS2 G.652.D / G.657.A1 / G.657.A2 8 LC/UPC to LC/UPC Dulplex OM4 Multimode PVC 2.0mm-1m(3ft) FOPC 1111D712-1(7242106)OS2 ( G.652.D/G.657.A1/G.657.A2)
