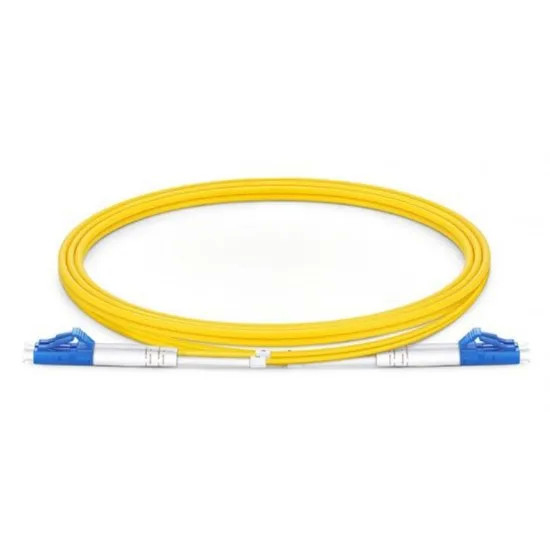

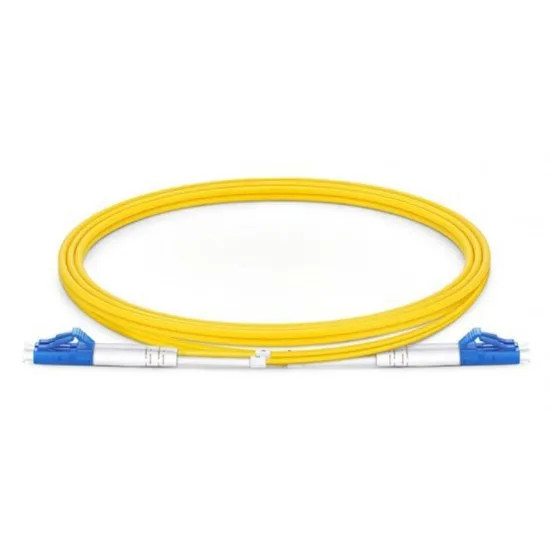

LC UPC to LC UPC Duplex G.652.D Single Mode Fiber Optic Patch Cord with PVC 0.9mm Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	LC UPC to LC UPC Duplex

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Fiber Count:

Simplex / Duplex

Main Material:

PVC / LSZH / Plenum (OFNP)

Cable Length:

1m, 2m, 3m. Other Lengths On Request

Fiber Height:

± 100nm

Highlight:

2m Single Mode Fiber Optic Cable

G.652.D Fiber Optic Cable

0.9mm Single Mode Fiber Optic Cable

Product Description

LC UPC to LC UPC Duplex G.652.D Single Mode Fiber Optic Cable

PVC 0.9mm - 2m (6ft) Fiber Optic Patch Cord

Product Overview

High-quality fiber optic patch cords available in various connector types including SC, LC, FC, ST/APC UPC with cable diameters of 0.9mm, 2.0mm, and 3.0mm. Compatible with both single mode and multimode fiber types with PVC or LSZH jacket options.

Product Specifications

LC UPC to LC UPC Duplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPC 1111D111-2 (7242101) SM(OS2)G.652.D/G.657.A1/G.657.A

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125) OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Mechanical Specifications

Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50um
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector Details

Performance Parameters

Parameter	LC UPC	LC UPC
SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 55	≥ 55
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensil Strength (N)	≥ 1000	≥ 1000
Operating Temperature (℃)	-20 ~ +85	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85	-40 ~ +85

Zion Code	Description
1111D111-2(7242101)	LC UPC to LC UPC Duplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPC

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team and extensive manufacturing experience.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Length Options Available
