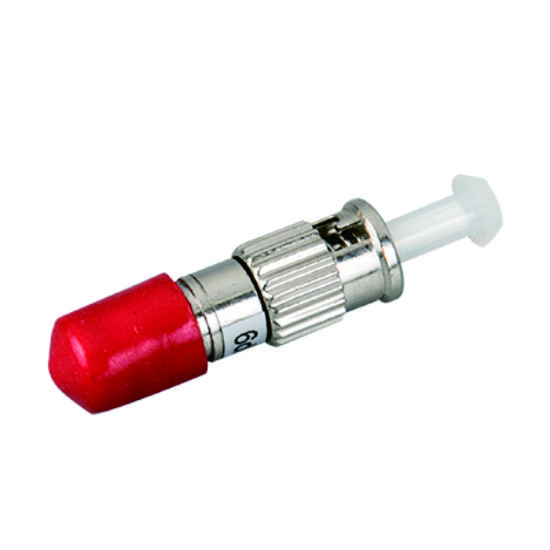

Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications

Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications
Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications
Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical Attenuator
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.6
Return Loss (dB): ≥45 Operating Temperature (℃): -5 ~ +65
Highlight:

ST 3dB Attenuator

,

ST Connector Fiber Optical Attenuator

,

ST Connector 3dB Attenuator

Product Description

Zion Communication 3dB Fiber Optical Attenuator ST Connector Type
Fiber Optic Attenuator
Operating Wavelength: 1310-1550nm | Attenuation Values: 2/3/5/7/10 dB | Connector Types: SC, LC, FC, ST (APC/UPC) | Features: Low Insertion Loss, High Return Loss
Inquire Now Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 0
ST 3dB Fiber Optical Attenuator
Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 1 Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 2
Zion Code and Description
Zion Code Zion Description
7236010 ST 3dB Fiber Optical Attenuator
Applications
Zion Communications' Fiber Optic Attenuator is an optical device designed to reduce optical signal energy. It prevents distortion in optical receivers caused by excessive input power. This passive optical component is essential for:
  • Optical power performance debugging
  • Fiber optic instrument calibration
  • Signal attenuation in optical communication systems
Manufactured using attenuating fiber doped with metal ions, this product precisely adjusts optical power to required levels. Primary applications include:
  • Fiber optic communication systems
  • Fiber optic CATV networks
  • High-power optical device measurement
  • Input power attenuation to prevent receiver distortion
Zion Communication Co., Ltd. products feature high attenuation precision, low additional loss, excellent stability, and wide operating temperature range.
Connector Types
Connector Type Description
Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 3 LC Fiber Optic Attenuator: Used in LC fiber interfaces, featuring an easy-to-operate modular jack (RJ) latch mechanism. Commonly used with SFP modules in routers.
Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 4 SC Fiber Optic Attenuator: Applied to SC fiber interfaces, resembling RJ-45 but with flat design and copper contact pins.
Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 5 FC Fiber Optic Attenuator: Features metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
Zion Communication 3dB ST Connector Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 6 ST Fiber Optic Attenuator: Round-shell design with turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.
Technical Specifications
Parameter FC, SC, LC, ST
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.6
Return Loss (dB) ≥45
Repeatability (dB) ≤ 0.2
Resolution (dB) ≤ 0.1
Wavelength Dependent Loss (dB) WDL≤ 0.3 (C & L Band)
Polarization Dependent Loss (dB) PDL≤ 0.2
Temperature Dependent Loss (dB) TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB) ±0.5
Tolerance for 6-30dB Attenuation (nm) ±10
Mating Durability (cycle) ≥1000
Response Time (dB/ms) 3
Attenuation Control Accuracy (dB) ±0.5
Supply Voltage (DC) ± 5V
Operating Temperature (°C) -5 ~ +65
Storage Temperature (°C) -40 ~ +75
Zion Communication's Fiber Optical Attenuator Product Line
Zion Code Product Code Zion Description
7237001 ZC11FXAADXX LC APC Female to LC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002 ZC11FXBBDXX LC UPC Female to LC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003 ZC11FXCCDXX SC APC Female to SC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004 ZC11FXDDDXX SC UPC Female to SC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005 ZC12FXEEDXX ST APC Female to ST APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006 ZC11FXFFDXX ST UPC Female to ST UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007 ZC11FXGGDXX FC APC Female to FC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008 ZC11FXHHDXX FC UPC Female to FC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237009 ZC11FXIIDXX MU APC Female to MU APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237010 ZC12FXJJDXX MU UPC Female to MU UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237011 ZC11FXKKDXX E2000 APC Female to E2000 APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237012 ZC11FXLLDXX E2000 UPC Female to E2000 UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237013 ZC12FXMMDXX 8F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237014 ZC11FXNNDXX 12F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237015 ZC11FXOODXX 24F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
OEM/ODM Services
Zion Communication offers comprehensive OEM/ODM services supported by our professional R&D team:
  • Customized Logo
  • Printing on Cable
  • Label/PE Bag/Carton Design
  • Different Colors & Lengths Available
