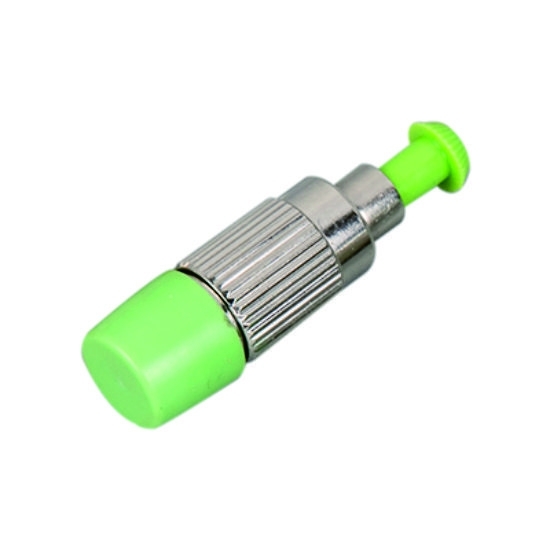

FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss

FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical Attenuator
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.6
Return Loss (dB): ≥45 Operating Temperature (℃): -5 ~ +65
Highlight:

7dB Fiber Optical Attenuator

,

FC Connector 7dB Attenuator

,

Zion Communication 7dB Attenuator

Product Description

FC 7dB Fiber Optical Attenuator
1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 0
Product Identification
Zion Code Zion Description
7236009 FC 7dB Fiber Optical Attenuator
Applications
ZION COMMUNICATIONS' Fiber Optic Attenuator is an optical device that reduces optical signal energy. It attenuates input optical power to prevent distortion in optical receivers caused by excessive input power. As a passive optical device, it is used for debugging optical power performance, calibrating fiber optic instruments, and attenuating fiber optic signals to required levels.
The product utilizes attenuating fiber doped with metal ions to precisely adjust optical power. Primary applications include:
  • Optical fiber communication systems
  • Optical fiber CATV networks
  • High-power optical device measurement
  • Input power attenuation to prevent receiver distortion
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 1
Connector Types
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 2
LC Connector: Used in LC fiber interfaces, connects to SFP modules with easy-to-operate modular jack latch mechanism. Commonly used in routers.
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 3
SC Connector: Applied to SC fiber interfaces, features a flat design similar to RJ-45 but with copper contact pins. Identified by copper columns instead of thin contacts.
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 4
FC Connector: Applied to FC fiber interfaces, features metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 5
ST Connector: Applied to ST fiber interfaces, commonly used in fiber distribution frames. Features round shell design with turnbuckle fastening. Often used for 10Base-F connections.
Technical Specifications
Parameter FC, SC, LC, ST
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.6
Return Loss (dB) ≥45
Repeatability (dB) ≤ 0.2
Resolution (dB) ≤ 0.1
Wavelength Dependent Loss (dB) WDL≤ 0.3 (C & L Band)
Polarization Dependent Loss (dB) PDL≤ 0.2
Temperature Dependent Loss (dB) TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB) ±0.5
Tolerance for 6-30dB Attenuation (nm) ±10
Mating Durability (cycles) ≥1000
Response Time (dB/ms) 3
Attenuation Control Accuracy (dB) ±0.5
Supply Voltage (DC) ± 5V
Operating Temperature (°C) -5 ~ +65
Storage Temperature (°C) -40 ~ +75
Related Fiber Optic Attenuator Products
Zion Code Product Code Description
7237001 ZC11FXAADXX LC APC Female to LC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002 ZC11FXBBDXX LC UPC Female to LC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003 ZC11FXCCDXX SC APC Female to SC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004 ZC11FXDDDXX SC UPC Female to SC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005 ZC12FXEEDXX ST APC Female to ST APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006 ZC11FXFFDXX ST UPC Female to ST UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007 ZC11FXGGDXX FC APC Female to FC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008 ZC11FXHHDXX FC UPC Female to FC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237009 ZC11FXIIDXX MU APC Female to MU APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237010 ZC12FXJJDXX MU UPC Female to MU UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237011 ZC11FXKKDXX E2000 APC Female to E2000 APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237012 ZC11FXLLDXX E2000 UPC Female to E2000 UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237013 ZC12FXMMDXX 8F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237014 ZC11FXNNDXX 12F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237015 ZC11FXOODXX 24F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team:
  • Customized Logo
  • Printing on Cable
  • Label/PE Bag/Carton Design
  • Various Colors & Lengths Available
Featured Product Images
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 6
7237005, ZC12FXEEDXX
ST APC Female to ST APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 7
7237004, ZC11FXDDDXX
SC UPC Female to SC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 8
7237003, ZC11FXCCDXX
SC APC Female to SC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 9
7237002, ZC11FXBBDXX
LC UPC Female to LC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
FC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength and Low Insertion Loss 10
7237001, ZC11FXAADXX
LC APC Female to LC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
