5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications

5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical Attenuator
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.6
Return Loss (dB): ≥45 Operating Temperature (℃): -5 ~ +65
Highlight:

5dB Fiber Optical Attenuator

,

Optical Networking Products 5dB Attenuator

,

FC Connector Type 5dB Attenuator

Product Description

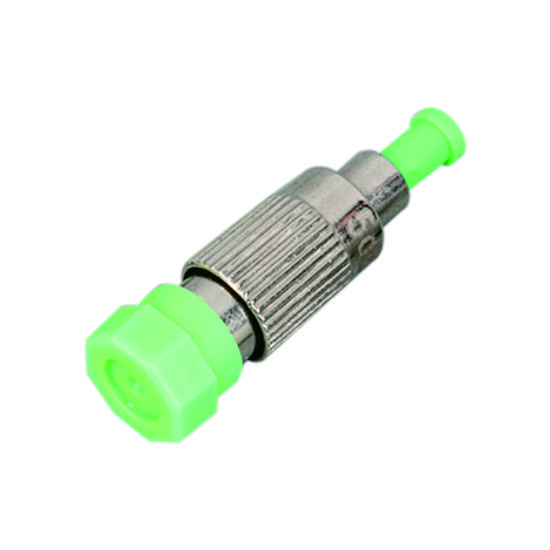

FC 5dB Fiber Optical Attenuator
Zion Communication's Fiber Optic Attenuator is a precision optical device designed to reduce optical signal energy. It effectively attenuates input optical power to prevent distortion in optical receivers caused by excessive power levels.
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 0
Product Identification
Zion Code Zion Description
7236008 FC 5dB Fiber Optical Attenuator
Applications
This fiber optic attenuator is an essential passive optical device used for debugging optical power performance, calibrating fiber optic instruments, and attenuating optical signals to required levels. The product features attenuating fiber doped with metal ions for precise power adjustment.
Primary Applications:
  • Optical fiber communication systems
  • Fiber optic CATV networks
  • High-power optical device measurement
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 1
Connector Types
Connector Type Description
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 2 LC fiber attenuator: Used in LC fiber interfaces, connects to SFP modules with modular jack (RJ) latch mechanism. Commonly used in routers.
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 3 SC fiber attenuator: Applied to SC fiber interfaces, features a flat design similar to RJ-45 but with copper contacts for fiber connections.
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 4 FC fiber attenuator: Applied to FC fiber interfaces, features metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 5 ST fiber attenuator: Applied to ST fiber interfaces, commonly used in fiber distribution frames. Features round shell with turnbuckle fastening, often used for 10Base-F connections.
Technical Specifications
Parameter FC, SC, LC, ST
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.6
Return Loss (dB) ≥45
Repeatability (dB) ≤ 0.2
Resolution (dB) ≤ 0.1
Wavelength Dependent Loss (dB) WDL≤ 0.3 (CorLBand)
Polarization Dependent Loss (dB) PDL≤ 0.2
Temperature Dependent Loss (dB) TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB) ±0.5
Tolerance for 6-30dB Attenuation (nm) ±10
Mating Durability (cycle) ≥1000
Response Time (dB/ms) 3
Attenuation Control Accuracy (dB) ±0.5
Supply Voltage (DC) ± 5V
Operating Temperature (°C) -5 ~ +65
Storage Temperature (°C) -40 ~ +75
Related Fiber Optic Attenuator Products
Image Zion Code Product Code Description
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 6 7237005 ZC12FXEEDXX ST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 7 7237004 ZC11FXDDDXX SC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 8 7237003 ZC11FXCCDXX SC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 9 7237002 ZC11FXBBDXX LC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
5dB FC Connector Type Fiber Optical Attenuator for 1310-1550nm Wavelength Applications 10 7237001 ZC11FXAADXX LC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
OEM/ODM Services
Zion Communication offers comprehensive OEM/ODM services with our professional R&D team:
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
