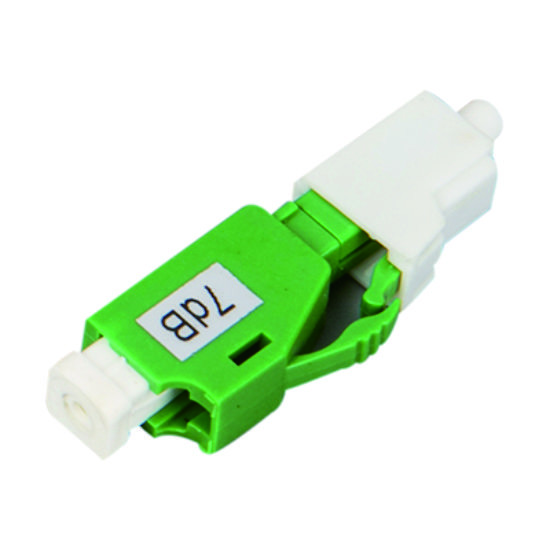

LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss

LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical Attenuator
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.6
Return Loss (dB): ≥45 Operating Temperature (℃): -5 ~ +65
Highlight:

LC/UPC Connector Fiber Optical Attenuator

,

7dB Attenuation Optical Attenuator

,

1310-1550nm Wavelength Fiber Optic Attenuator

Product Description

LC/UPC 7dB Fiber Optical Attenuator
High-performance fiber optic attenuator designed to reduce optical signal energy with precision and reliability.
Product Overview
Operating wavelength: 1310-1550nm | Attenuation values: 2/3/5/7/10 dB | Connector types: SC, LC, FC, ST (APC/UPC) | Features: Low insertion loss, high return loss
Inquire Now
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 0LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 1LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 2
Product Identification
Zion CodeZion Description
7236006LC/UPC 7dB Fiber Optical Attenuator
Applications
ZION COMMUNICATIONS' Fiber Optic Attenuator reduces optical signal energy to prevent distortion in optical receivers caused by excessive input power. This optical passive device is essential for debugging optical power performance, calibrating fiber optic instruments, and attenuating fiber signals to required levels.
Primary Applications
  • Optical fiber communication systems
  • Fiber optic CATV networks
  • High-power optical device measurement
  • Signal power adjustment to optimal receiver levels
Connector Types
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 3
LC Connector
Used in LC fiber interfaces with modular jack (RJ) latch mechanism. Commonly used with SFP modules in routers.
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 4
SC Connector
Applied to SC fiber interfaces, featuring a flat design similar to RJ-45 but with copper contact pins.
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 5
FC Connector
Features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 6
ST Connector
Round shell design with turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
Technical Specifications
ParameterFC, SC, LC, ST
Operating Wavelength (nm)1310-1550
Insertion Loss (dB)≤ 0.6
Return Loss (dB)≥45
Repeatability (dB)≤ 0.2
Resolution (dB)≤ 0.1
Wavelength Dependent Loss (dB)WDL≤ 0.3 (C & L Band)
Polarization Dependent Loss (dB)PDL≤ 0.2
Temperature Dependent Loss (dB)TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB)±0.5
Tolerance for 6-30dB Attenuation (nm)±10
Mating Durability (cycles)≥1000
Response Time (dB/ms)3
Attenuation Control Accuracy (dB)±0.5
Supply Voltage (DC)± 5V
Operating Temperature (°C)-5 to +65
Storage Temperature (°C)-40 to +75
Related Fiber Optic Attenuator Products
Zion CodeProduct CodeZion Description
7237001ZC11FXAADXXLC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002ZC11FXBBDXXLC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003ZC11FXCCDXXSC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004ZC11FXDDDXXSC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005ZC12FXEEDXXST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006ZC11FXFFDXXST UPC Female to ST UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007ZC11FXGGDXXFC APC Female to FC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008ZC11FXHHDXXFC UPC Female to FC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237009ZC11FXIIDXXMU APC Female to MU APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237010ZC12FXJJDXXMU UPC Female to MU UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237011ZC11FXKKDXXE2000 APC Female to E2000 APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237012ZC11FXLLDXXE2000 UPC Female to E2000 UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237013ZC12FXMMDXX8F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237014ZC11FXNNDXX12F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237015ZC11FXOODXX24F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team and extensive manufacturing experience.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
Product Gallery
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 7
ST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 8
SC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 9
SC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 10
LC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
LC/UPC 7dB Fiber Optical Attenuator with 1310-1550nm Wavelength for High Return Loss 11
LC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
