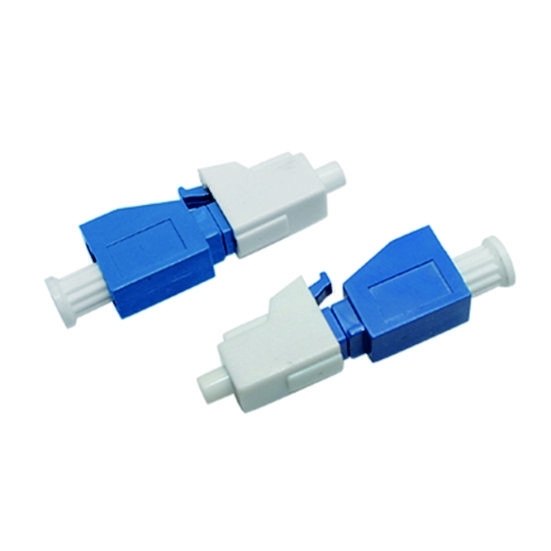

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss
LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical Attenuator
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.6
Return Loss (dB): ≥45 Operating Temperature (℃): -5 ~ +65
Highlight:

fiber optical attenuator

,

fiber optic attenuator

Product Description

LC/UPC 3dB Fiber Optical Attenuator
Product Overview

ZION COMMUNICATIONS' Fiber Optic Attenuator is an optical device designed to reduce optical signal energy. It effectively attenuates input optical power to prevent distortion in optical receivers caused by excessive input power levels.

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 0
LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 1
Product Identification
Zion CodeZion Description
7236004LC/UPC 3dB Fiber Optical Attenuator
Applications

This optical passive device is essential for debugging optical power performance, calibrating optical fiber instruments, and attenuating optical fiber signals in communication systems. The product utilizes attenuating fiber doped with metal ions to precisely adjust optical power to required levels.

  • Optical fiber communication systems
  • Optical fiber CATV networks
  • High-power optical device measurement
  • Input power attenuation to prevent receiver distortion
Connector Types
Connector TypeDescription
LC, SC, FC, STAvailable in various connector configurations to suit different interface requirements
LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 2
LC Connector

Used in LC fiber interfaces, connects to SFP modules with easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 3
SC Connector

Applied to SC fiber interfaces, features a flat design similar to RJ-45 but with copper contacts. Identified by internal copper columns.

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 4
FC Connector

Applied to FC fiber interfaces, features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 5
ST Connector

Applied to ST fiber interfaces, commonly used in fiber distribution frames. Features round shell with turnbuckle fastening, often used for 10Base-F connections.

Technical Specifications
ParameterFC, SC, LC, ST
Operating Wavelength (nm)1310-1550
Insertion Loss (dB)≤ 0.6
Return Loss (dB)≥45
Repeatability (dB)≤ 0.2
Resolution (dB)≤ 0.1
Wavelength Dependent Loss (dB)WDL≤ 0.3 (C+L Band)
Polarization Dependent Loss (dB)PDL≤ 0.2
Temperature Dependent Loss (dB)TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB)±0.5
Tolerance for 6-30dB Attenuation (nm)±10
Mating Durability (cycle)≥1000
Response Time (dB/ms)3
Attenuation Control Accuracy (dB)±0.5
Supply Voltage (DC)± 5V
Operating Temperature (°C)-5 ~ +65
Storage Temperature (°C)-40 ~ +75
Related Fiber Optical Attenuators
Zion CodeProduct CodeZion Description
7237001ZC11FXAADXXLC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002ZC11FXBBDXXLC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003ZC11FXCCDXXSC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004ZC11FXDDDXXSC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005ZC12FXEEDXXST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006ZC11FXFFDXXST UPC Female to ST UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007ZC11FXGGDXXFC APC Female to FC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008ZC11FXHHDXXFC UPC Female to FC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237009ZC11FXIIDXXMU APC Female to MU APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237010ZC12FXJJDXXMU UPC Female to MU UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237011ZC11FXKKDXXE2000 APC Female to E2000 APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237012ZC11FXLLDXXE2000 UPC Female to E2000 UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237013ZC12FXMMDXX8F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237014ZC11FXNNDXX12F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237015ZC11FXOODXX24F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team:

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 6
7237005

ZC12FXEEDXX - ST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 7
7237004

ZC11FXDDDXX - SC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 8
7237003

ZC11FXCCDXX - SC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 9
7237002

ZC11FXBBDXX - LC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)

LC/UPC 3dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 10
7237001

ZC11FXAADXX - LC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
